6. Remove the plastic bracket.

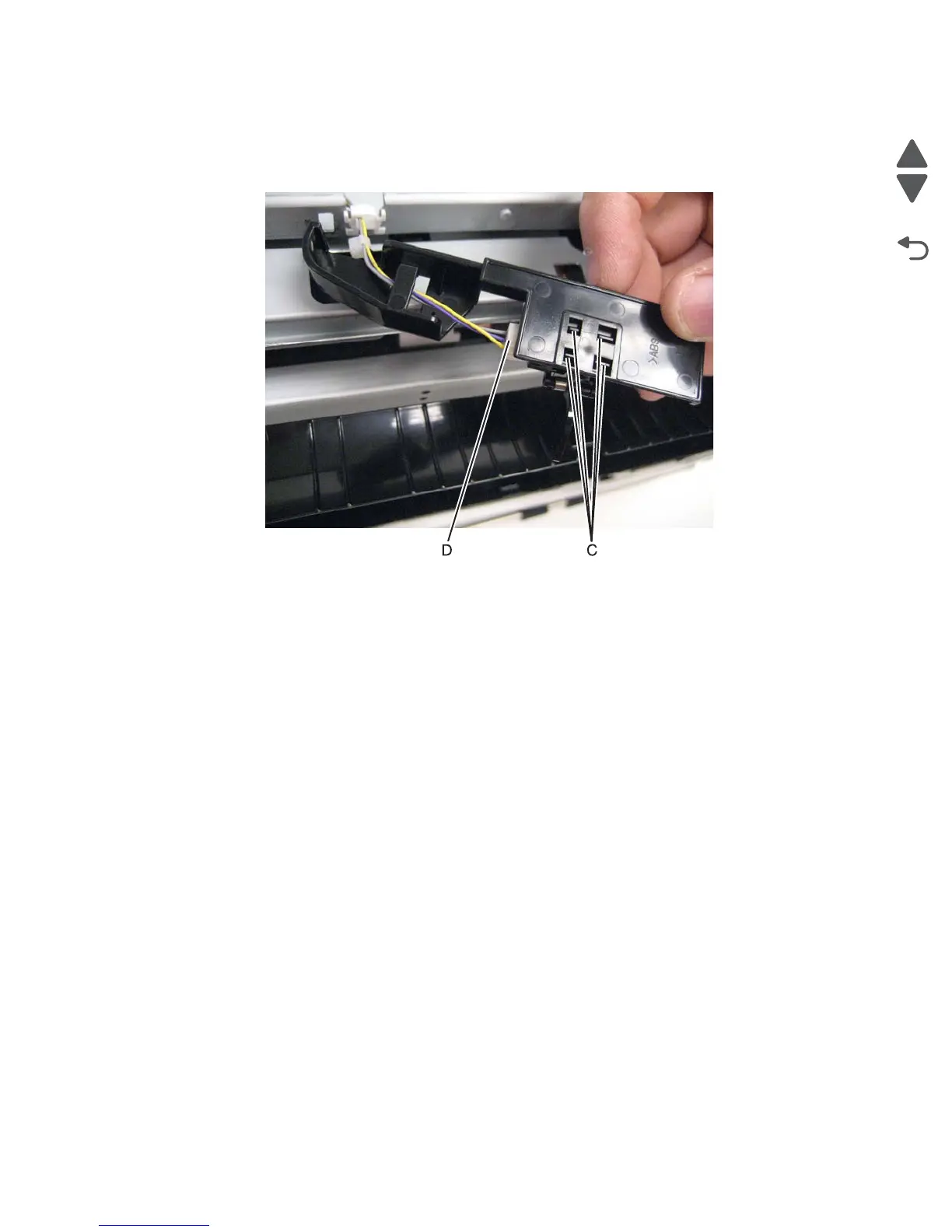

7. Release the hooks (C) securing the sensor (tray module feedout) to the machine.
8. Remove the sensor.
9. Disconnect the cable (D).
10. Remove the sensor (tray module feedout).
Sensor (tray module left door interlock) removal
1. Remove the left cover.
2. Open the left door.
3. Remove the two screws (A) securing the plastic cover to the machine.
