Lexmark C950 - Bridge Decurler Right Cover Removal; Bridge Decurler Top Cover Removal

Repair information 4-229
5058-030
Go Back
Previous
Next
Bridge decurler right cover removal
1. Remove the bridge unit assembly. See “Bridge unit assembly removal” on page 4-232.

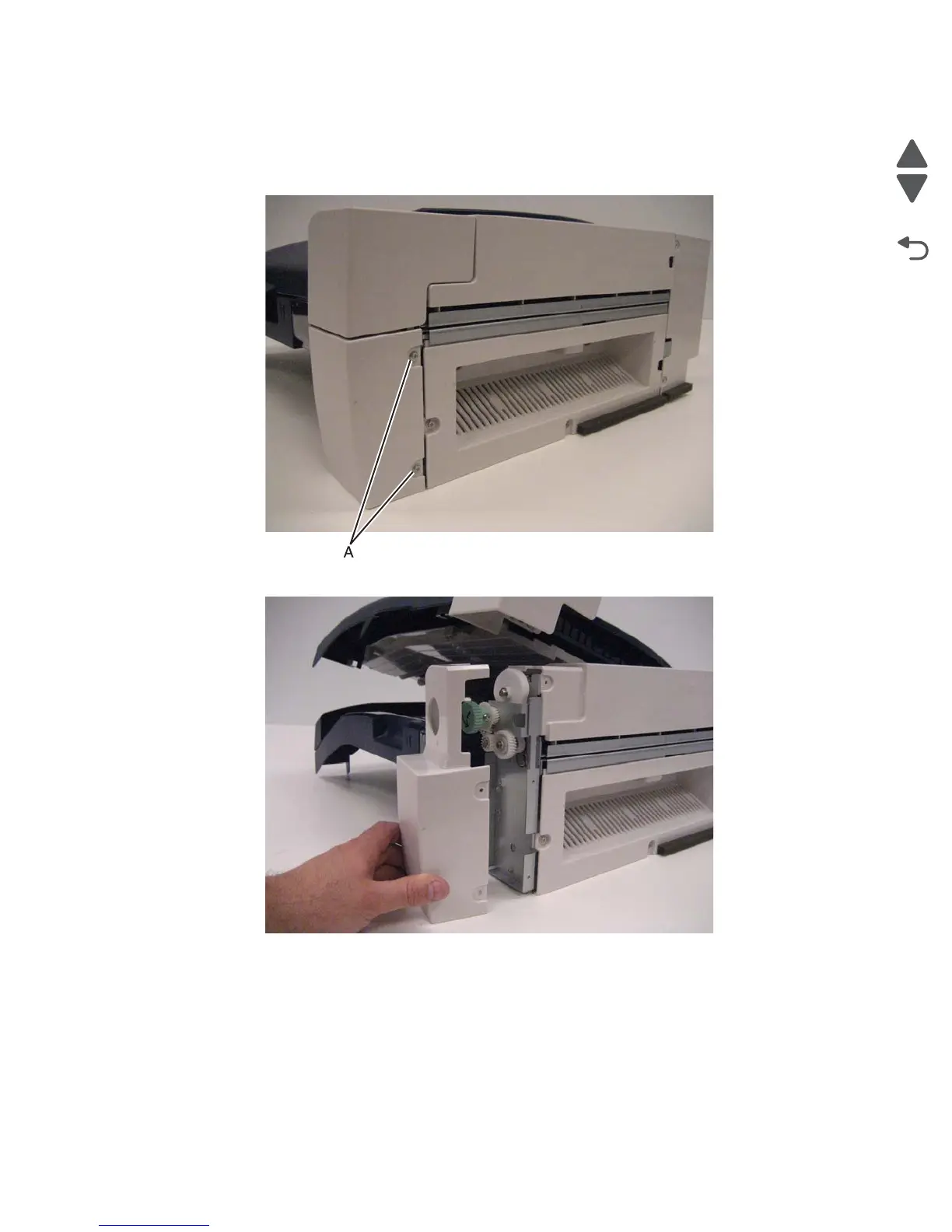

2. Remove the two screws (A) securing the bridge decurler right cover to the machine.
3. Remove the bridge decurler right cover.
Bridge decurler top cover removal
1. Remove the bridge unit assembly. See “Bridge unit assembly removal” on page 4-232.
2. Remove the bridge decurler rear cover. See “Bridge decurler rear cover removal” on page 4-228.
3. Raise the bridge top door to its uppermost position.
