Lexmark C950 - Finisher-Sensors

5-32 Service Manual
5058-030
Go Back
Previous
Next

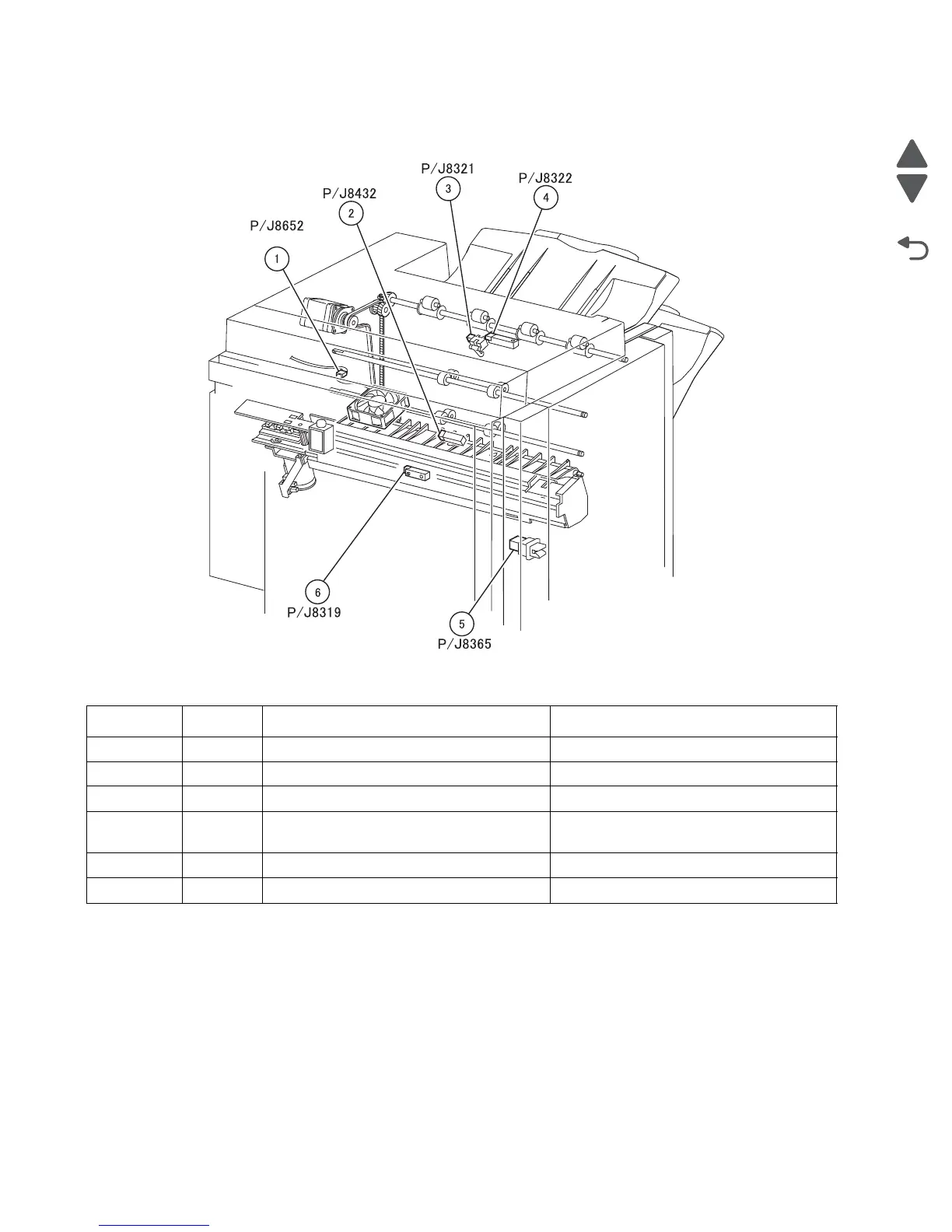

Finisher—sensors
Plug/Jack Callout Plug/jack description Connects to
P/J8319 6 Sensor (finisher media entrance) Finisher controller PCBA
P/J8321 3 Sensor (upper media exit) Finisher controller PCBA
P/J8322 4 Sensor (upper media bin full) Finisher controller PCBA
P/J8365 5 Sensor (finisher front door interlock) • Eject cover interlock switch
• Finisher controller PCBA
P/J8432 2 Sensor (diverter gate) Finisher controller PCBA
P/J8652 1
