Lexmark C950 Service Manual

Repair information 4-393
5058-030
Go Back
Previous
Next

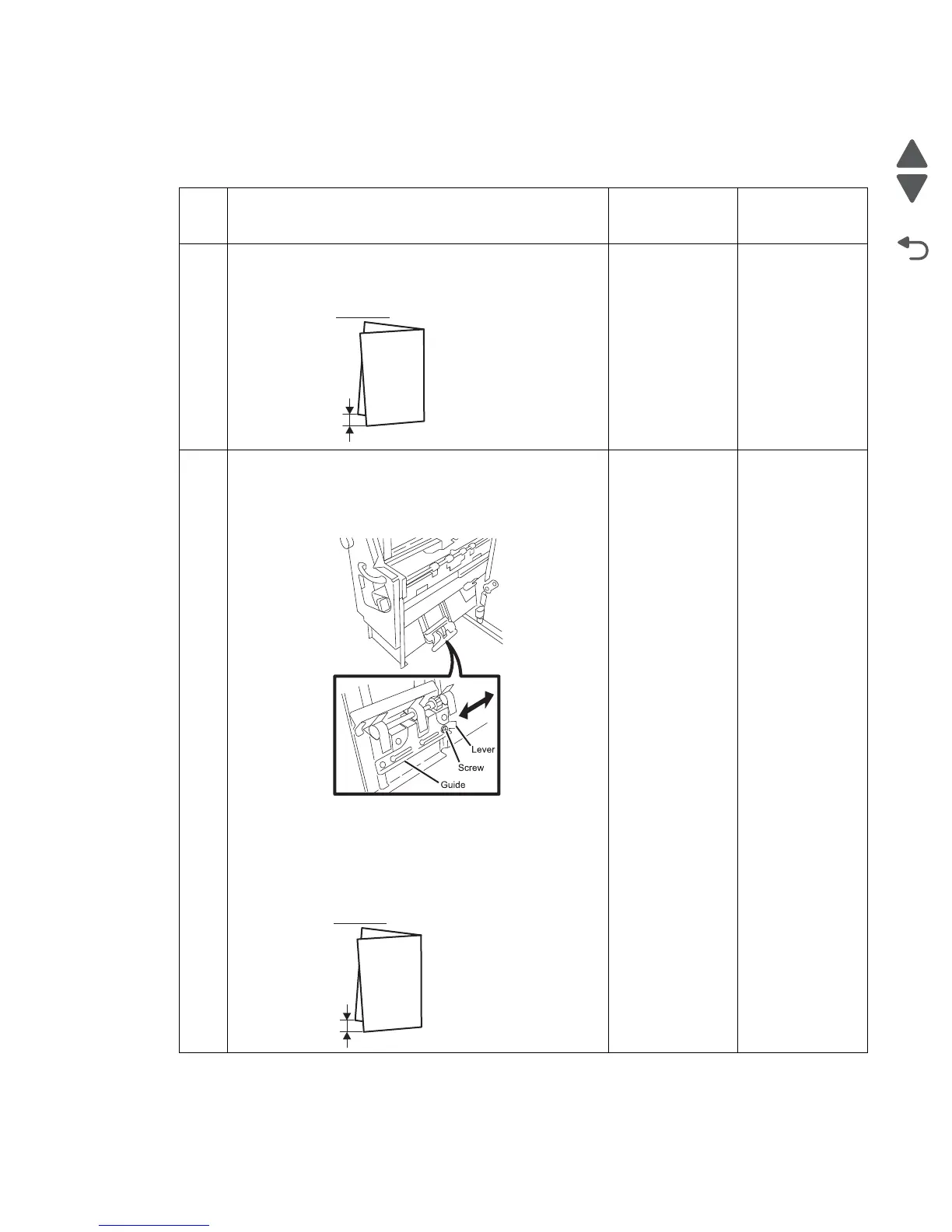

Booklet maker setup & adjustment
Folding precision skew adjustment
Step Check Yes No
1 Print a 2 sheet booklet using the booklet maker.
Does the booklet appear skewed as shown in the graphic
below?
Go to step 2. The folding
precision skew
adjustment is in
spec.
2
Check the booklet maker precision skew adjuster.
1. Open the finisher front door
2. Pull the booklet maker out of the finisher.
3. Loosen the screw securing the end guide skew lever.
4. Adjust the end guide skew lever by moving it either
forward or rearward. 1 step on the scale = 1 mm shift.
5. Once the adjustment is made, tighten the screw.
Print a 2 sheet booklet using the booklet maker.
Do the booklet sheet edges appear skewed as shown in the
graphic below?
Repeat step 2 until
the end guide
precision skew is
in spec.
Problem solved.
Fold Precision
When stapling
A4/Letter:
A 2.0mm
Other:
A 2.5mm
When un-stapling
A4/Letter:
A 2.0mm
Other:
A 2.5mm
●
●
●
●
≤
≤
≤
≤
A
Fold Precision
When stapling
A4/Letter:
A 2.0mm
Other:
A 2.5mm
When un-stapling
A4/Letter:
A 2.0mm
Other:
A 2.5mm
●
●
●
●
≤
≤
≤
≤
A
