Lexmark C950 Service Manual

Diagnostic aids 3-73
5058-030
Go Back
Previous
Next

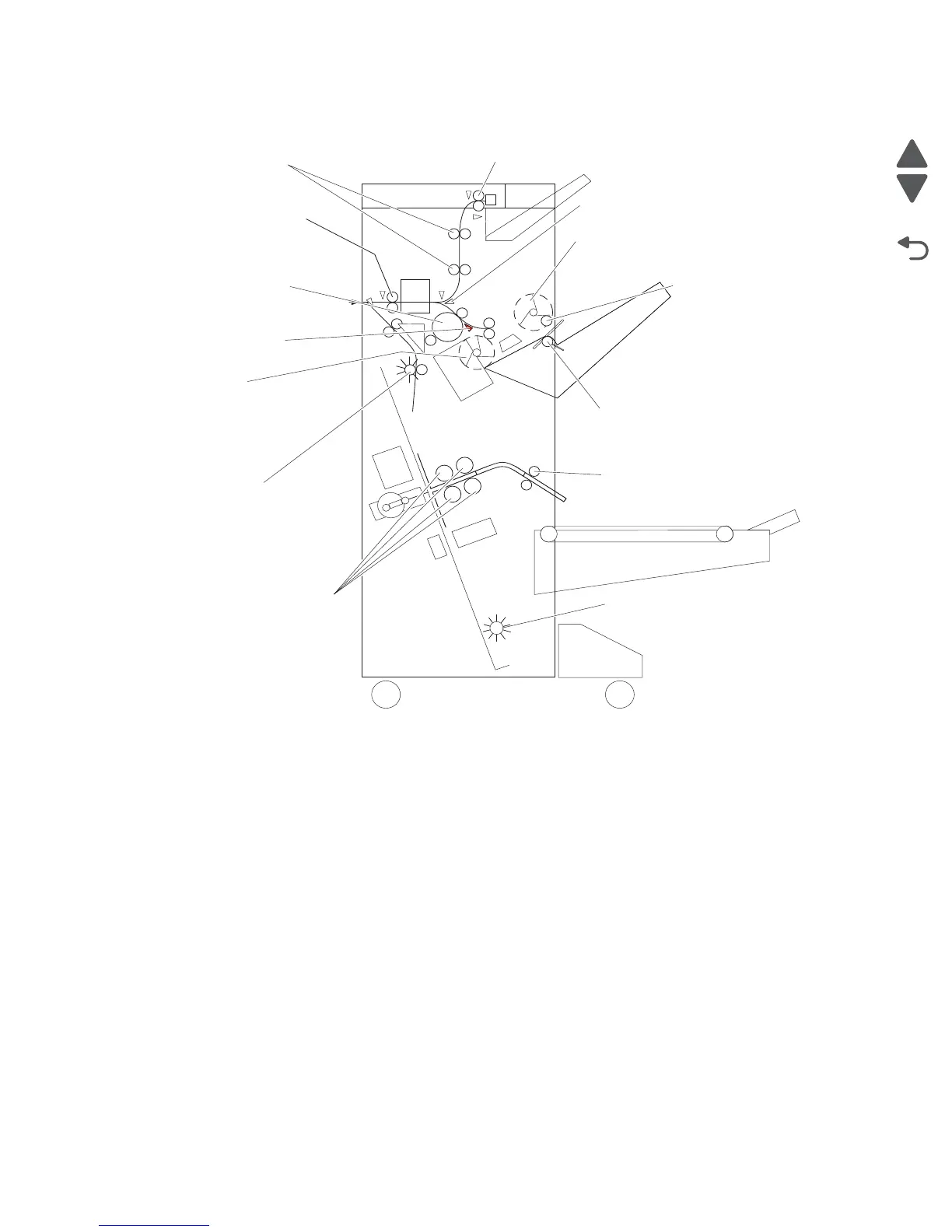

Finisher roll assemblies
Finisher Diverter Gate
Eject Clamp – driven by media
eject clamp motor
Buffer Diverter Gate
Upper Media Exit Roll Assembly-
driven by motor (exit)
Media Eject Shaft Assembly –
driven by media eject motor assembly
Booklet media exit roll assembly
driven by booklet folding/exit
drive motor assembly
Booklet fold roll assembly
driven by booklet folding/exit
drive motor assembly
Booklet entrance roll
driven by booklet
media entrance drive motor
assembly
Main paddle assembly
driven by drive motor
(entrance paddle)
Buffer Roll Assembly –
driven by drive motor
(buffer/transport)
Finisher Media Entrance
Roll Assembly – driven by
drive motor (entrance paddle)
Upper Media Transport Roll Assembly –
driven by drive motor (buffer/transport)
Sub Paddle –
driven by drive motor (entrance/paddle)
Booklet paddle
shaft assembly
