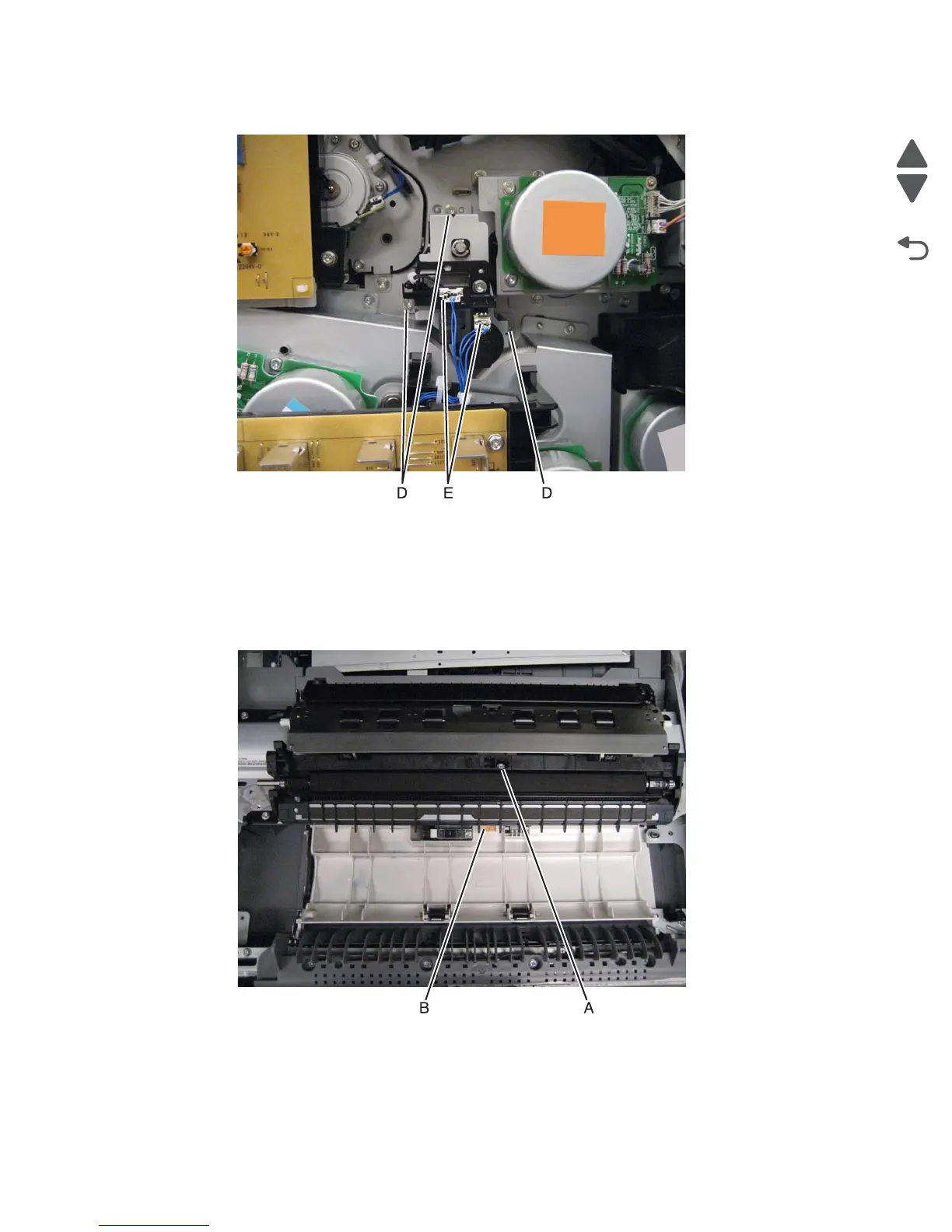

7. Disconnect the two cables (E).
8. Remove the 1st transfer retract clutch assembly.
2nd transfer roller removal
1. Open the printer left duplex door assembly.
2. Remove the screw (A) that secures the 2nd transfer roller.
3. Push the latch (B) to release the 2nd transfer roller.
4. Remove the 2nd transfer roller.
Reinstallation note: When replacing the 2nd transfer roller, ensure that the screw is properly reinstalled.
