Lexmark C950 - Assembly 76: Booklet Maker 4

7-80 Service Manual
5058-030
Go Back
Previous
Next

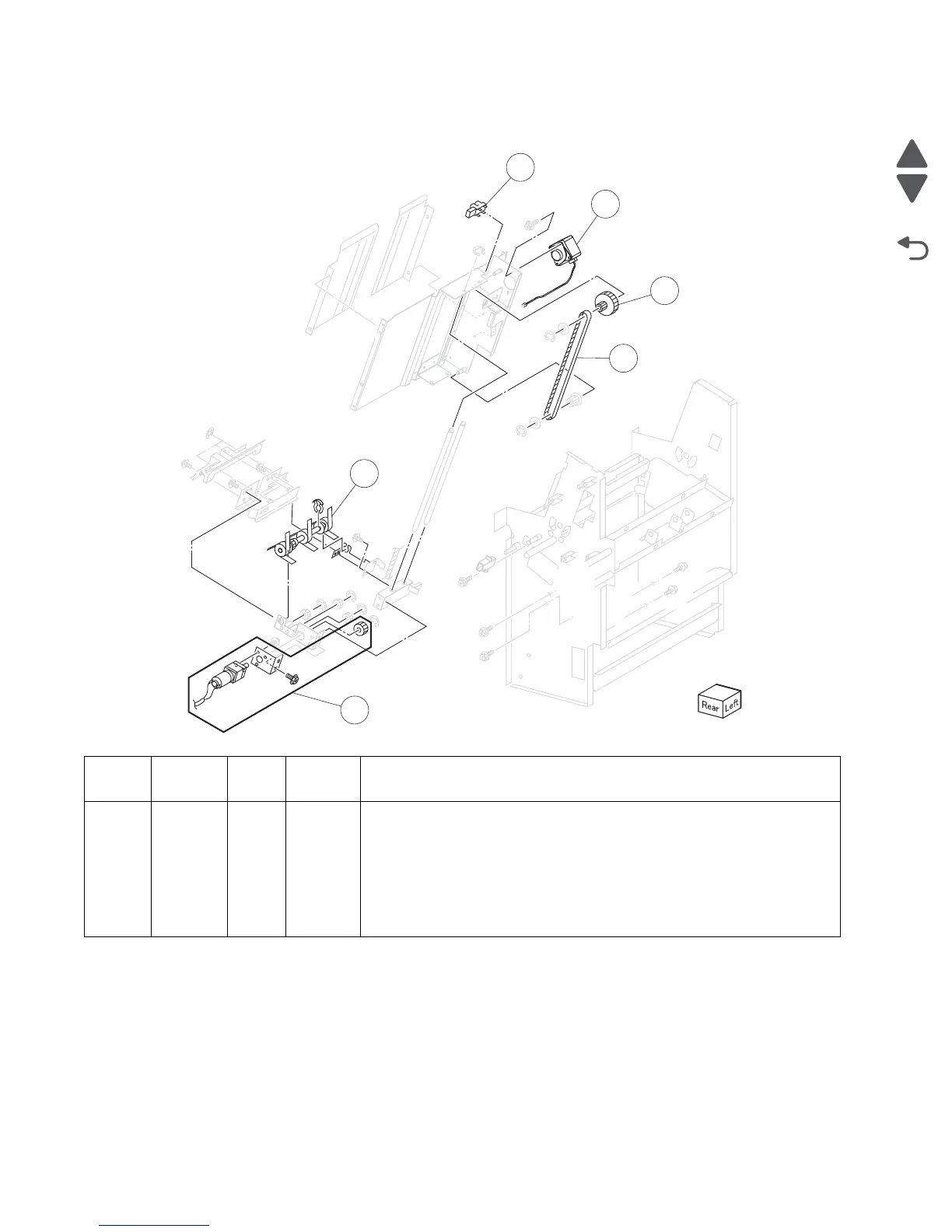

Assembly 76: Booklet maker 4
Asm-
index
Part
number
Units/
mach
Units/
FRU
Description
76-1 40X0825 31Sensor (booklet end guide HP)
2 40X7489 11Booklet end guide drive motor
3 40X3993 11Gear pulley 40/20T
4 40X3994 11Booklet end guide drive belt
5 40X6917 11Booklet paddle roll
6 40X7490 11Booklet paddle drive motor assembly
5
2
3
4
6
1
