Lexmark C950 - Controller

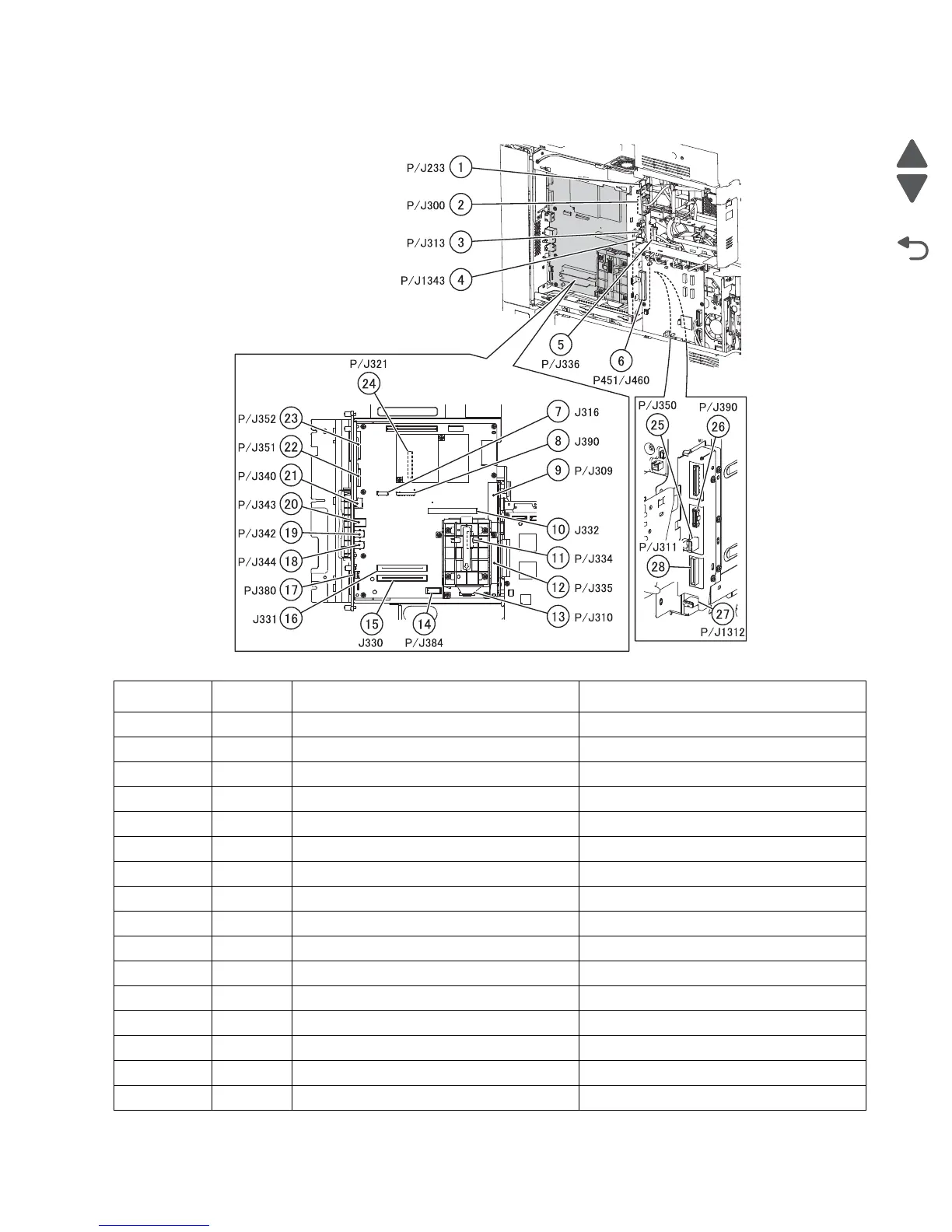

Connector locations 5-15
5058-030
Go Back
Previous
Next
Controller
Plug/Jack Callout Plug/jack description Connects to
P/J233 1 Bridge PCBA Controller cooling fan
P/J300 2
P/J309 9
P/J310 13
P/J311 28
P/J313 3 Bridge PCBA Controller cooling fan
J316 7
P/J321 24
J330 15
J331 16
J332 10
P/J334 11
P/J335 12
P/J336 5 Bridge PCBA Scanner controller PCBA
P/J340 21
P/J342 19
