Lexmark C950 - Operator Panel Speaker (SFP) Removal

4-126 Service Manual
5058-030
Go Back
Previous
Next

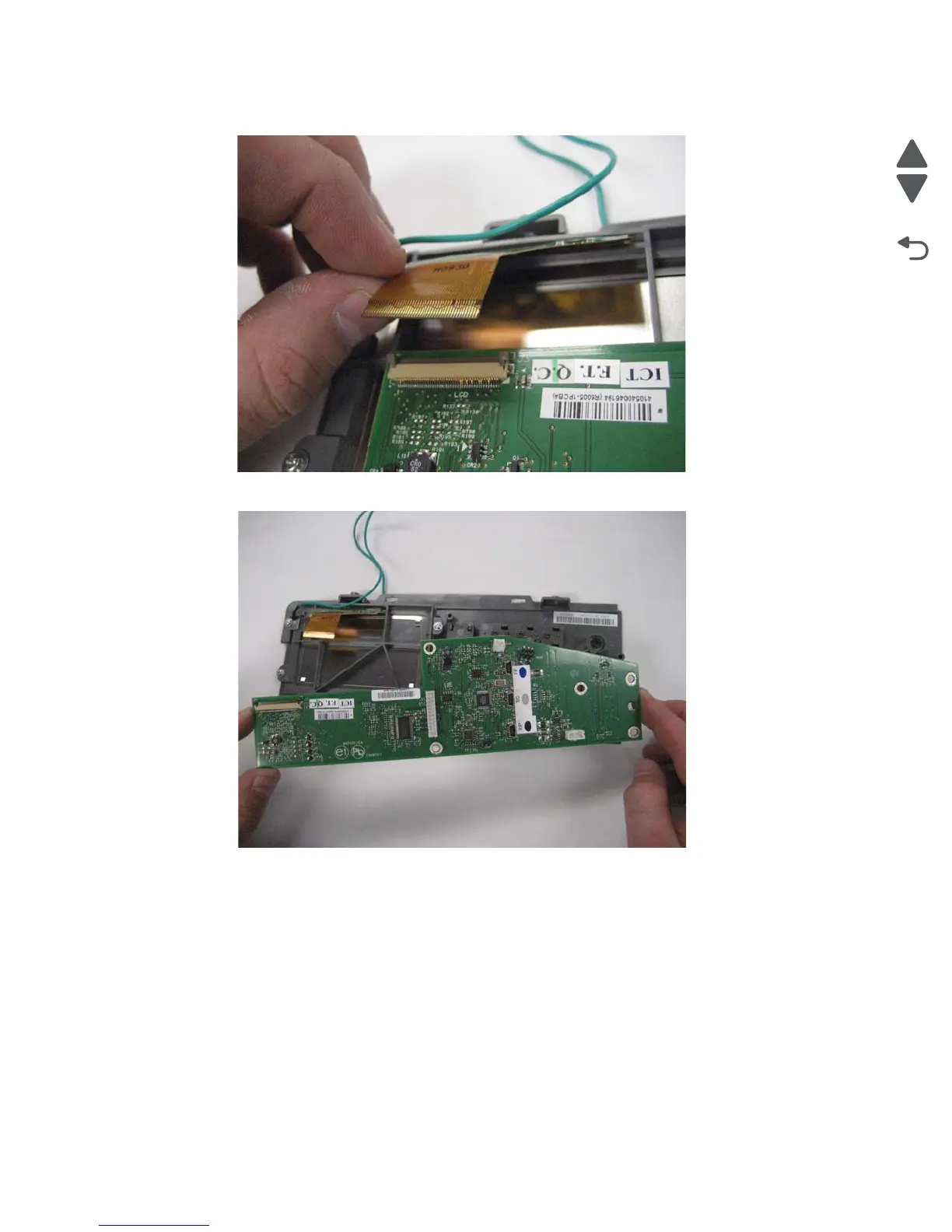

5. Disconnect the ribbon cable from the operator panel PCBA.
6. Remove the operator panel PCBA.
Operator panel speaker (SFP) removal
1. Remove the operator panel front cover. See “Operator panel front cover (SFP)” on page 4-8.
2. Remove the operator panel. See “Operator panel assembly (SFP) removal” on page 4-123.
