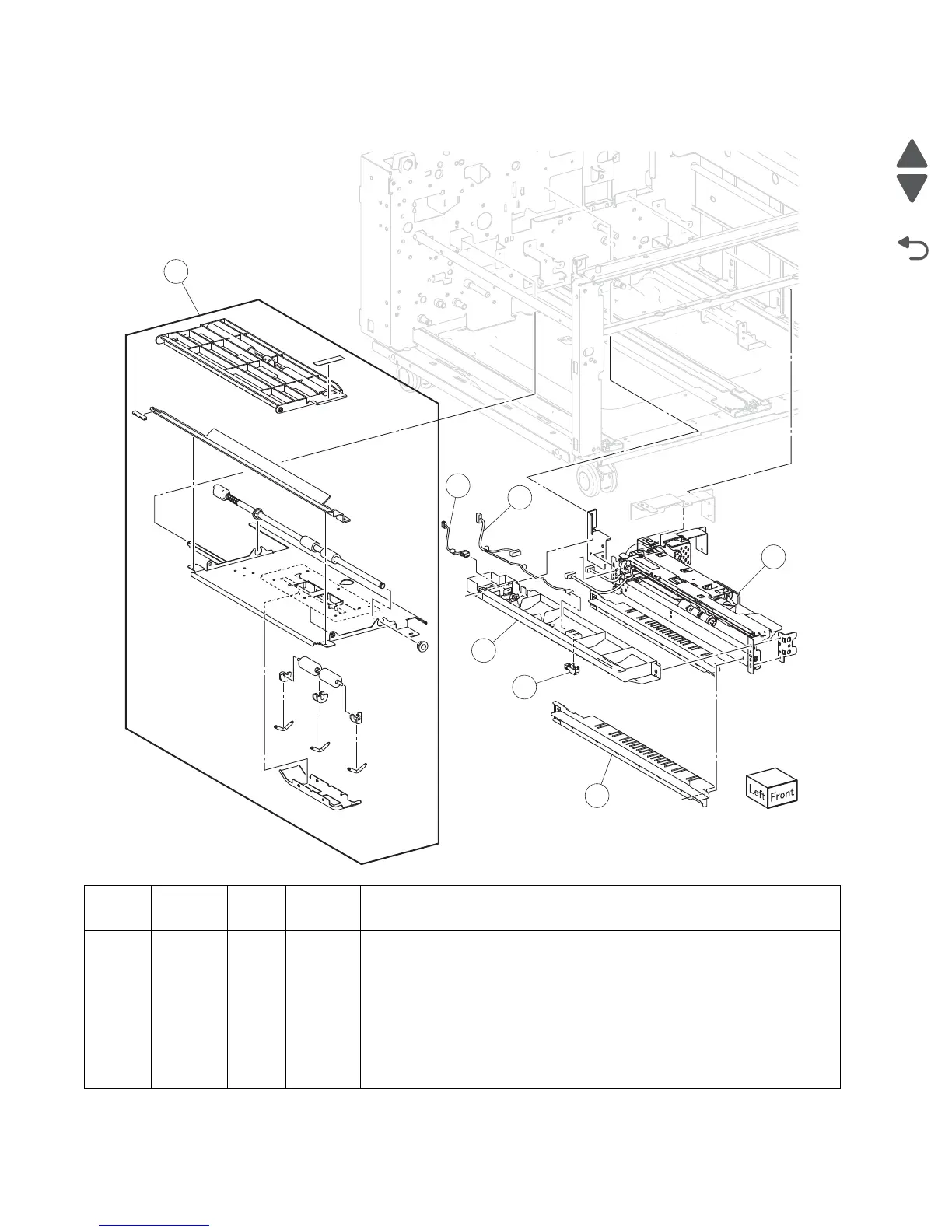

Assembly 29: TTM Media feed 1
Asm-
index
Part
number
Units/
mach
Units/
FRU
Description
29-1 40X6696 11TTM tray 4 media feeder
2 40X6834 11TTM tray 4 feeder lower guide
3 40X0727 11Sensor (TTM tray 4 feedout)
4 40X6871 11TTM tray 4 feeder upper guide
5 40X6883 11TTM tray 4 feeder sensor cable
6 40X6896 11TTM tray 4 feeder motor cable
7 40X6697 11TTM tray 4 media transport
7
1
2
3
4
5
6
