Connector locations 5-7
5058-030

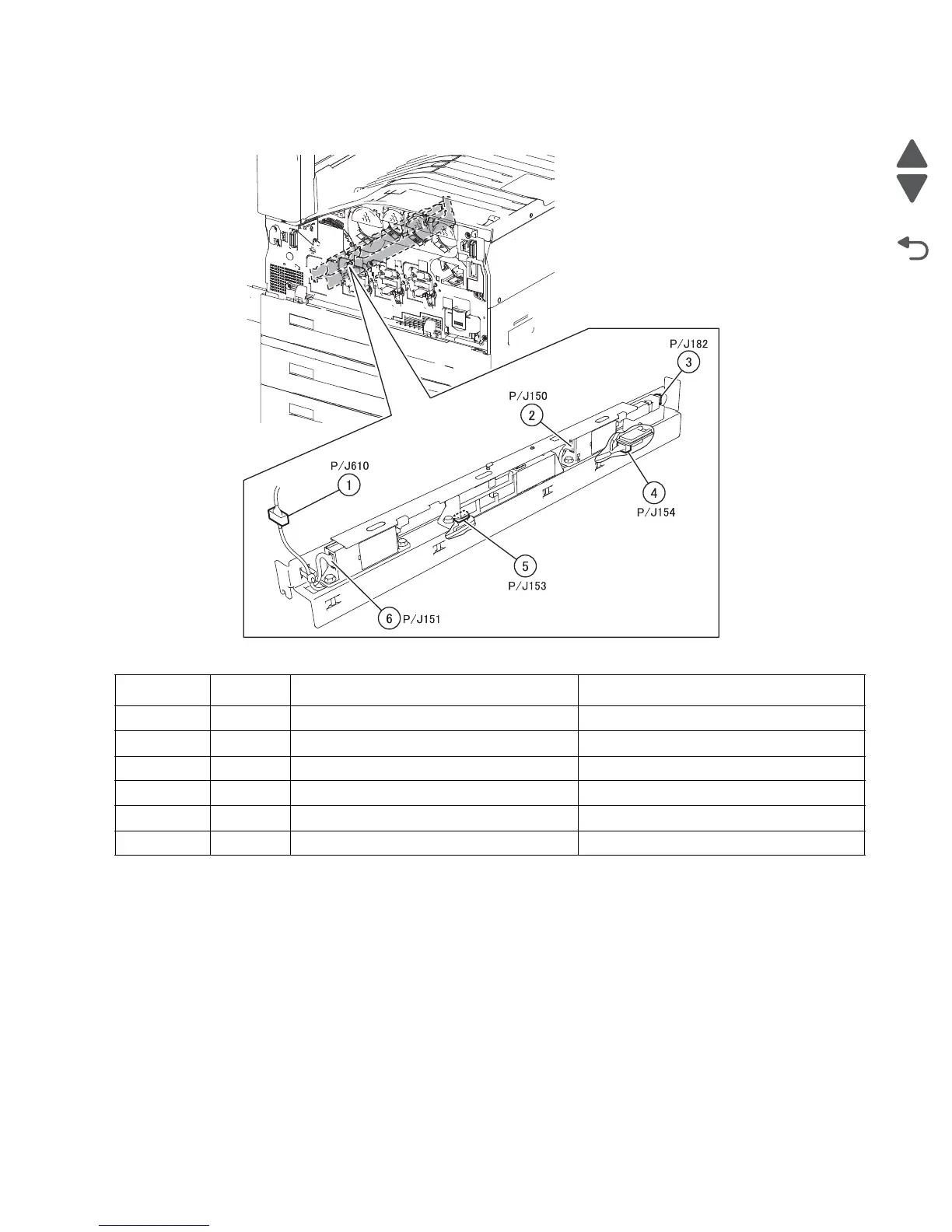

Image calibration
Plug/Jack Callout Plug/jack description Connects to
P/J150 2 Sensor (image calibration) Upper engine PCBA
P/J151 6 Sensor (image calibration) Upper engine PCBA
P/J153 5 Sensor (image calibration) Upper engine PCBA
P/J154 4 Sensor (image calibration) Upper engine PCBA
P/J182 3 Sensor (image calibration) Upper engine PCBA
P/J610 1 Sensor (image calibration) Upper engine PCBA
