Repair information 4-11
5058-030

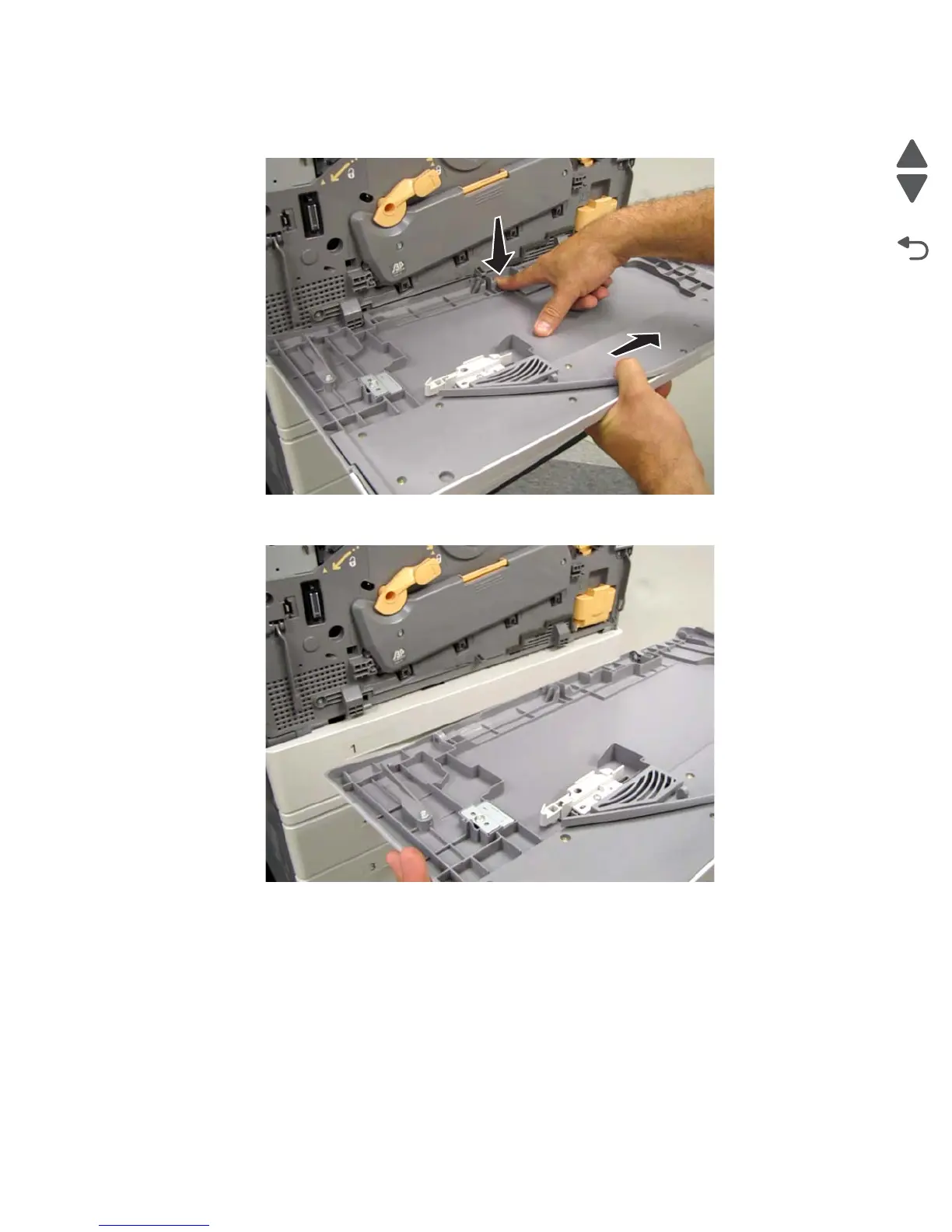

3. Lower the printer front door to its lowest position, slightly flex the printer front door by pushing down on the
middle portion, and then pull to the right to disengage.
4. Remove the printer front door.
Printer right cover removal
1. Open the printer front door.
2. Remove media tray 1.
3. Remove the rear upper cover. See “Rear upper cover removal” on page 4-16.
4. Remove the rear lower cover. See “Rear lower cover removal” on page 4-14.
