Lexmark C950 - Front Left Cooling Fan Removal

4-72 Service Manual
5058-030
Go Back
Previous
Next
Front left cooling fan removal
1. Remove the printer front door. See “Printer front door removal” on page 4-10.
2. Remove the transfer belt cleaner. See “Transfer belt cleaner removal” on page 4-172.
3. Remove the waste toner box.
4. Remove the four photoconductor units.
5. Remove the four toner supplies.
6. Remove the operator panel front cover.
7. Remove the printhead retract door. See “Printhead retract door removal” on page 4-139.
8. Remove the inner cover. See “Inner cover removal” on page 4-3.
9. Remove the inner plate. See “Inner plate removal” on page 4-92.
10. Remove the waste toner auger chute. See “Waste toner auger chute removal” on page 4-188.

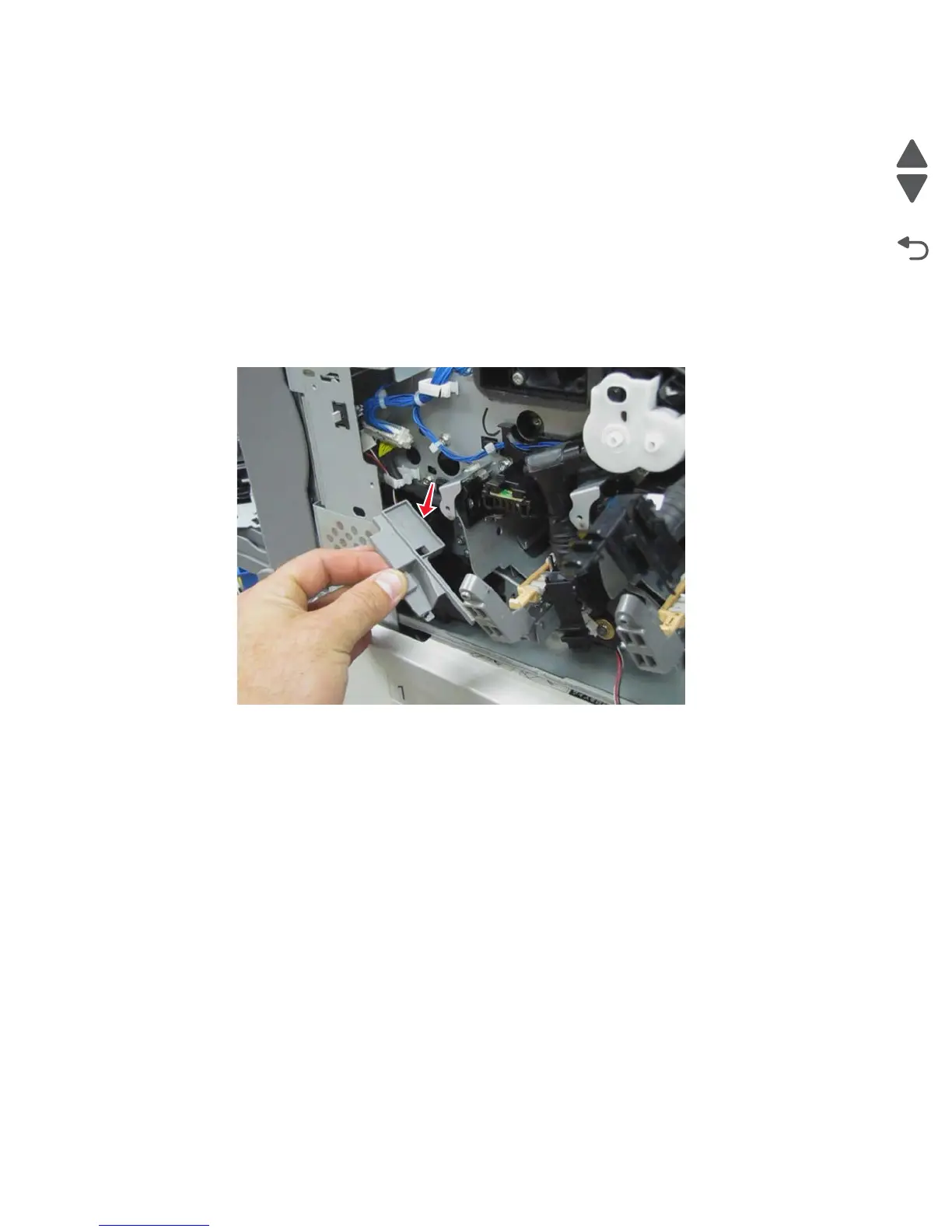

11. Release the two latches securing the plastic bracket to the machine, and remove the plastic bracket.
12. Release the clamp (A) securing the cable connected to the fan.
