Reinstallation notes:
• The tension of the belt (entrance/paddle) (B) is automatically adjusted by the force of the spring attached to
the belt tensioner bracket (A).
• Tighten the two screws in the order shown.
Stepper motor (exit) assembly and belt (exit) removal
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-309.

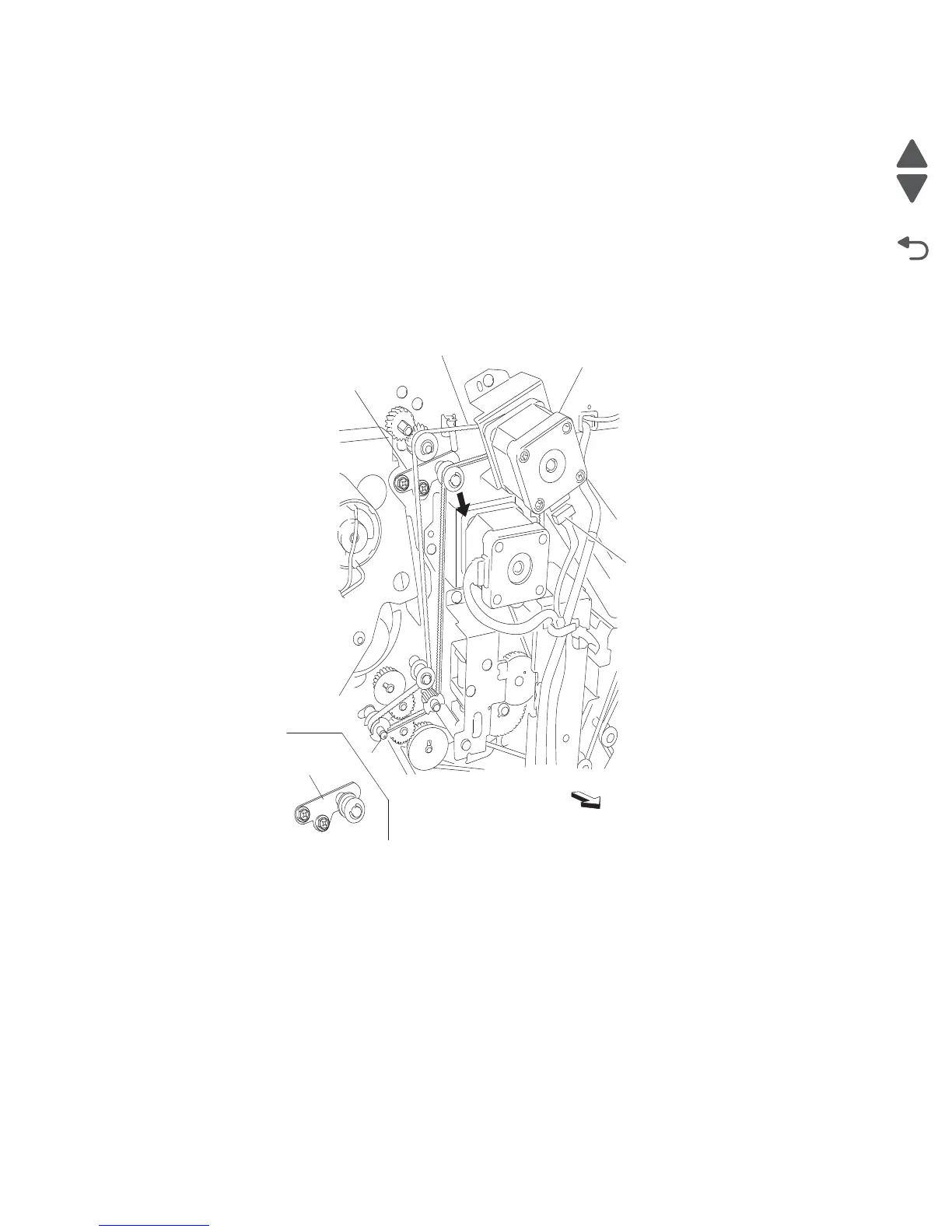

2. Loosen the two screws securing the belt tensioner bracket (A) to the finisher, and move it down as shown.
3. Remove the belt (exit) (B) from the stepper motor (exit) (C).
4. Disconnect the connector from the stepper motor (exit).
5. Remove the two screws securing the bracket (D) to the finisher.
6. Remove the bracket (D).
A
B
C
A
Rear
Second
First
Connector
