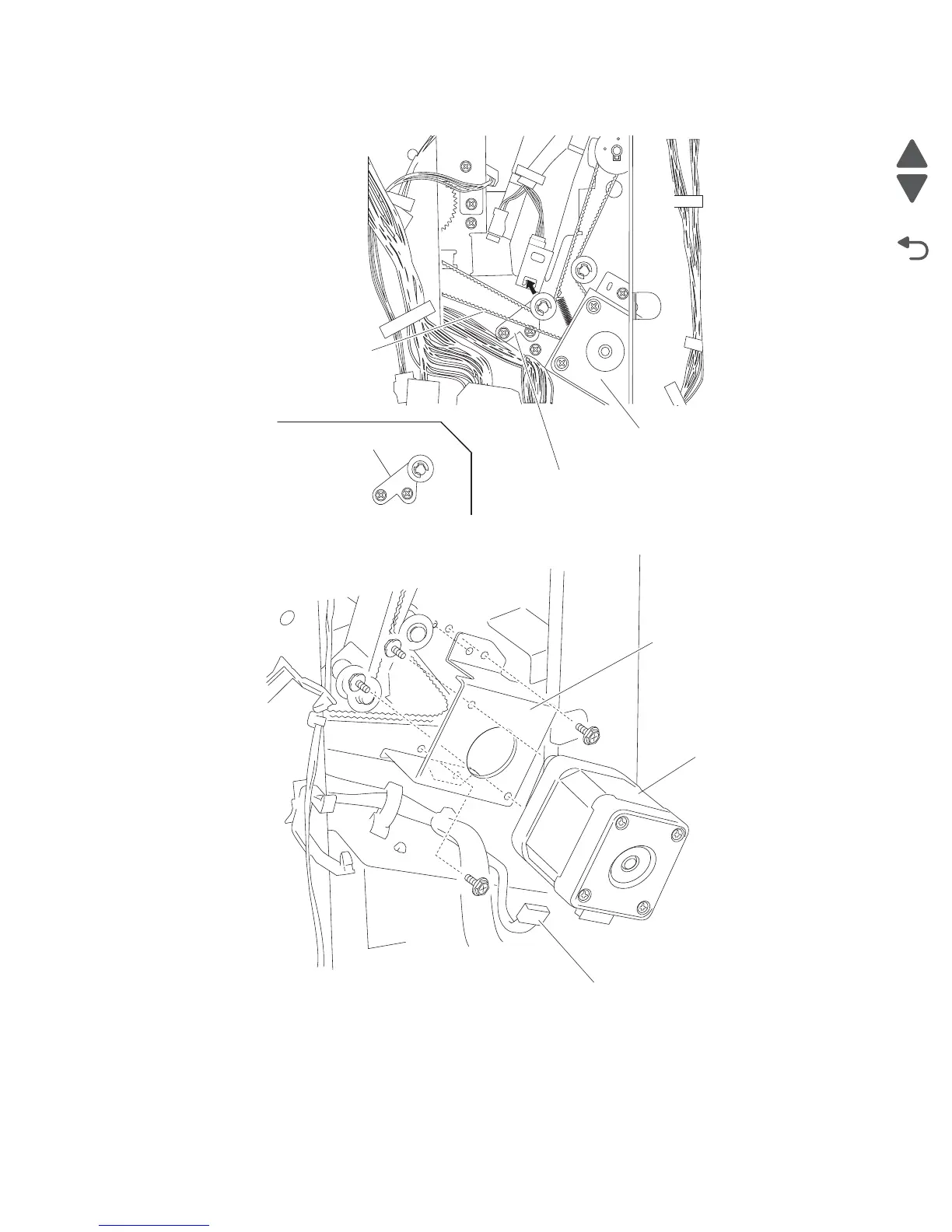

4. Disconnect the connector from the stepper motor (entrance/paddle) (C).
5. Remove the two screws securing the bracket (D) to the finisher.
6. Remove the bracket (D).
7. Remove the two screws securing the bracket (D) to the stepper motor (entrance/paddle) (C).
8. Remove the stepper motor (entrance/paddle) (C).
9. Remove the belt (entrance/paddle) (B).
B
A
Second
First
A
C
D
C
Connector
