Lexmark C950 - Finisher-Compiler

Connector locations 5-33
5058-030
Go Back
Previous
Next
Finisher—compiler

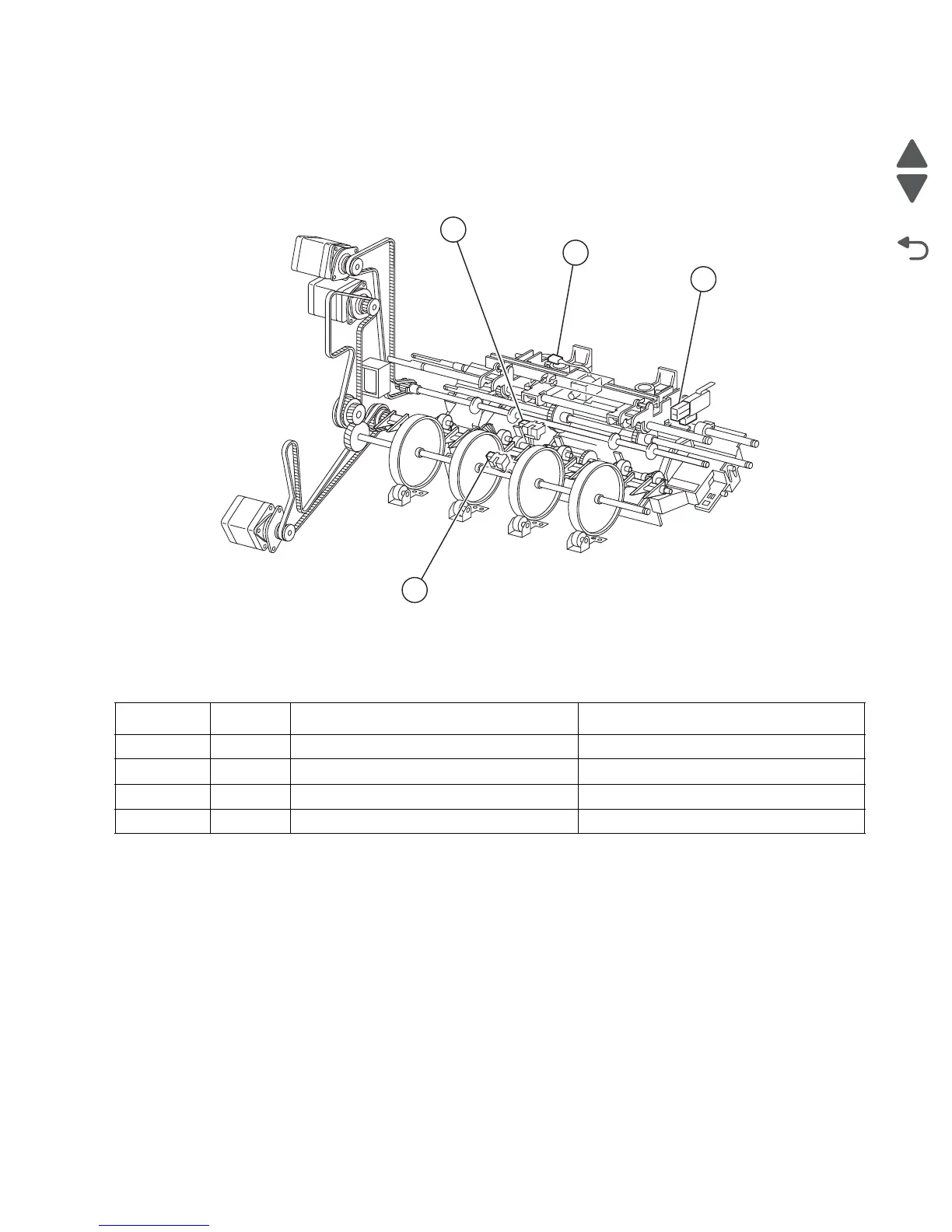

Plug/Jack Callout Plug/jack description Connects to
P/J8320 1 Sensor (lower media exit) Finisher controller PCBA
P/J8340 2 Sub paddle solenoid Finisher controller PCBA
P/J8364 3 Eject cover interlock switch Finisher controller PCBA
P/J8392 4 Sensor (buffer path) Finisher controller PCBA
1
2
3
4
P/ J8320
P/ J8340
P/ J8364
P/ J8392
