Connector locations 5-39

5058-030

Go Back

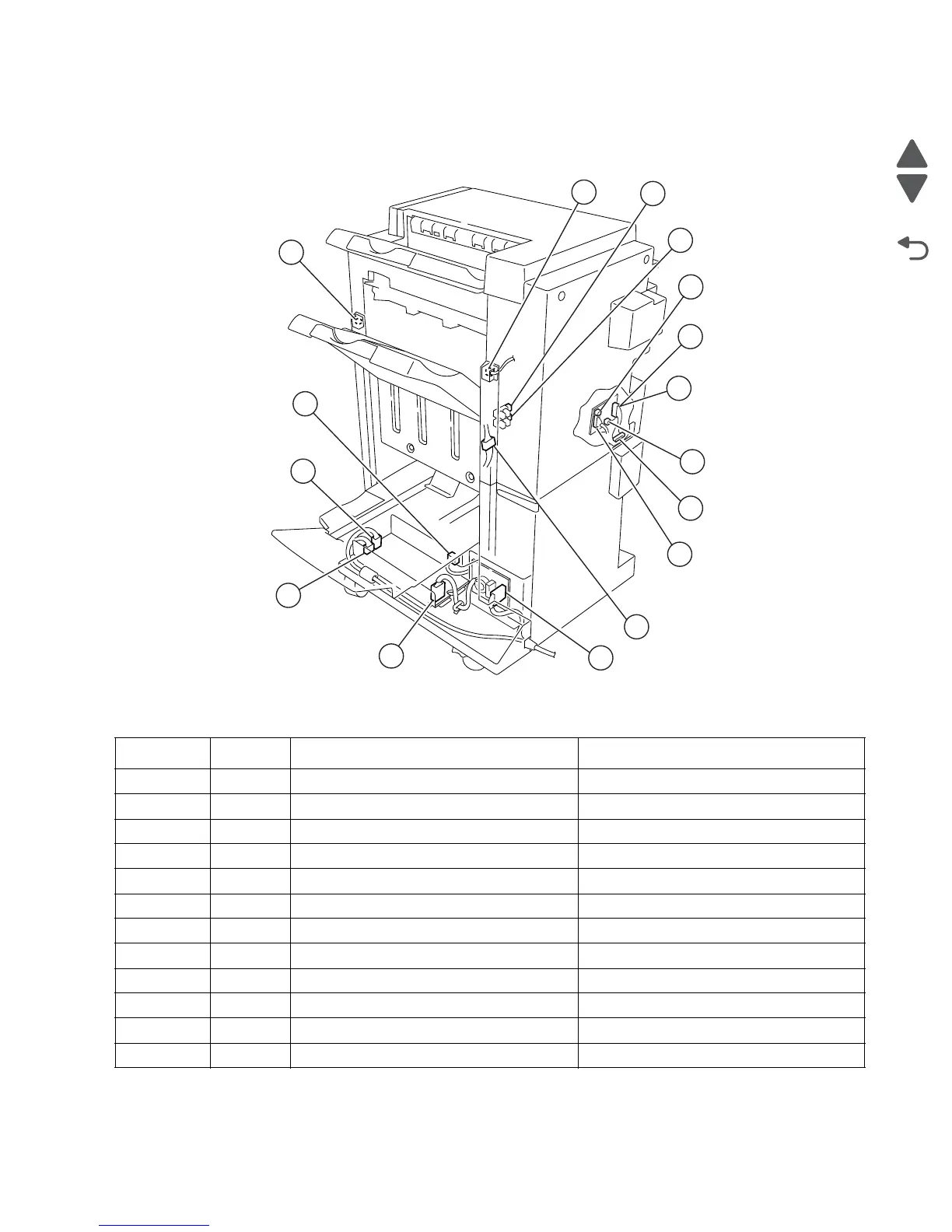

Finisher—LVPS, stacker

Plug/Jack Callout Plug/jack description Connects to

P/J1 8 Finisher AC filter PCBA

P/J2 9 Finisher LVPS PCBA Finisher AC filter PCBA

P/J502 11 Finisher LVPS PCBA Finisher controller PCBA

P/J505 10 Finisher LVPS PCBA Finisher controller PCBA

P/J8326 4 Sensor (stacker bin no media) Finisher controller PCBA

P/J8327 3 Sensor (stacker bin upper limit) Finisher controller PCBA

P/J8330 1 Sensor (stacker bin level F) Finisher controller PCBA

P/J8331 2 Sensor (stacker bin level R) Finisher controller PCBA

P/J8371 6 Bridge PCBA Finisher controller PCBA

P/J8372 14

P/J8373 15

P8390 16

P/ J8331

P/ J8327

P/ J8326

P/ J8500

P/ J8372

P/ J8396

P/ J8373

P/ J8390

P/ J8371

P/ J8461A

P/ J8461B

P/ J1

P/ J2

P/ J505

P/ J502

P/ J8460

P/ J8330
