Lexmark C950 - Operator Panel PCBA (SFP) Removal

4-124 Service Manual
5058-030
Go Back
Previous
Next

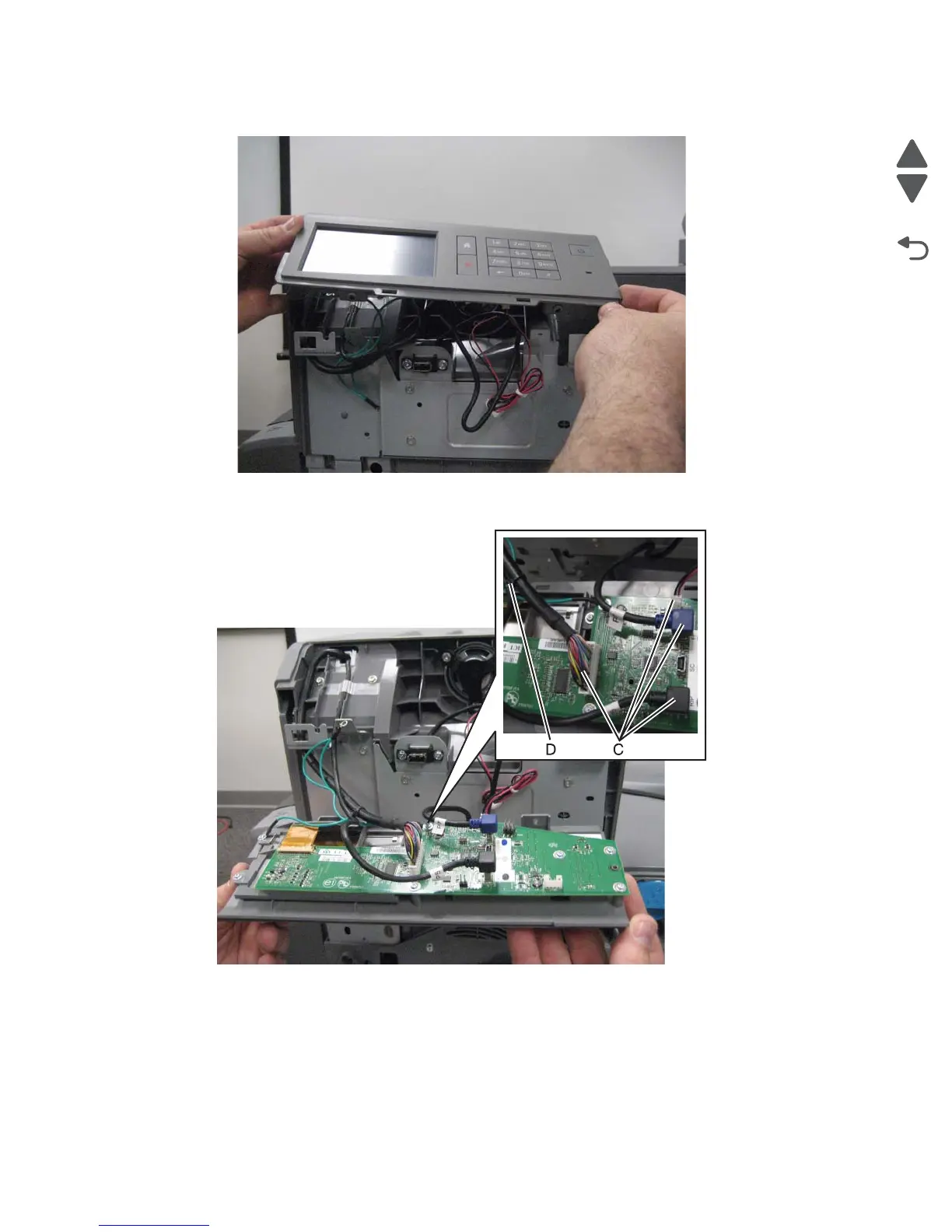

4. Remove the operator panel from the machine.
5. Disconnect the four cables (C) from the operator panel.
6. Release the harnesses from the clamp (D).
Operator panel PCBA (SFP) removal
1. Remove the operator panel front cover. See “Operator panel front cover (SFP)” on page 4-8.
2. Remove the operator panel. See “Operator panel assembly (SFP) removal” on page 4-123.
