Lexmark C950 - Operator Panel Assembly (SFP) Removal

Repair information 4-123
5058-030
Go Back
Previous
Next

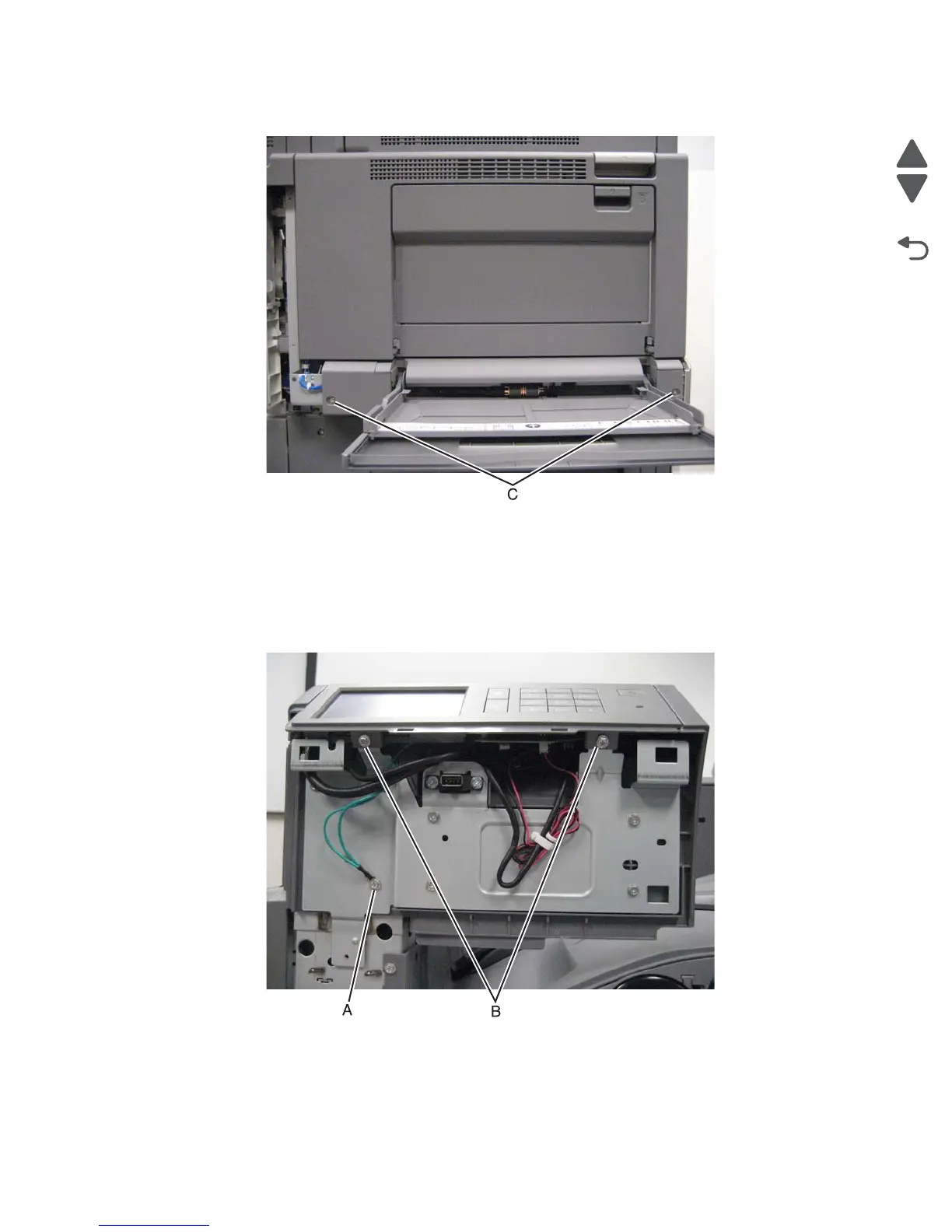

6. Remove the two screws (C).
7. Remove the MPF tray feeder.
Operator panel assembly (SFP) removal
1. Remove the operator panel front cover. See “Operator panel front cover (SFP)” on page 4-8.
2. Remove the screw (A) securing the ground wire to the machine.
3. Remove the two screws (B) securing the operator panel to the machine.
