Lexmark C950 Service Manual

5-30 Service Manual
5058-030
Go Back
Previous
Next

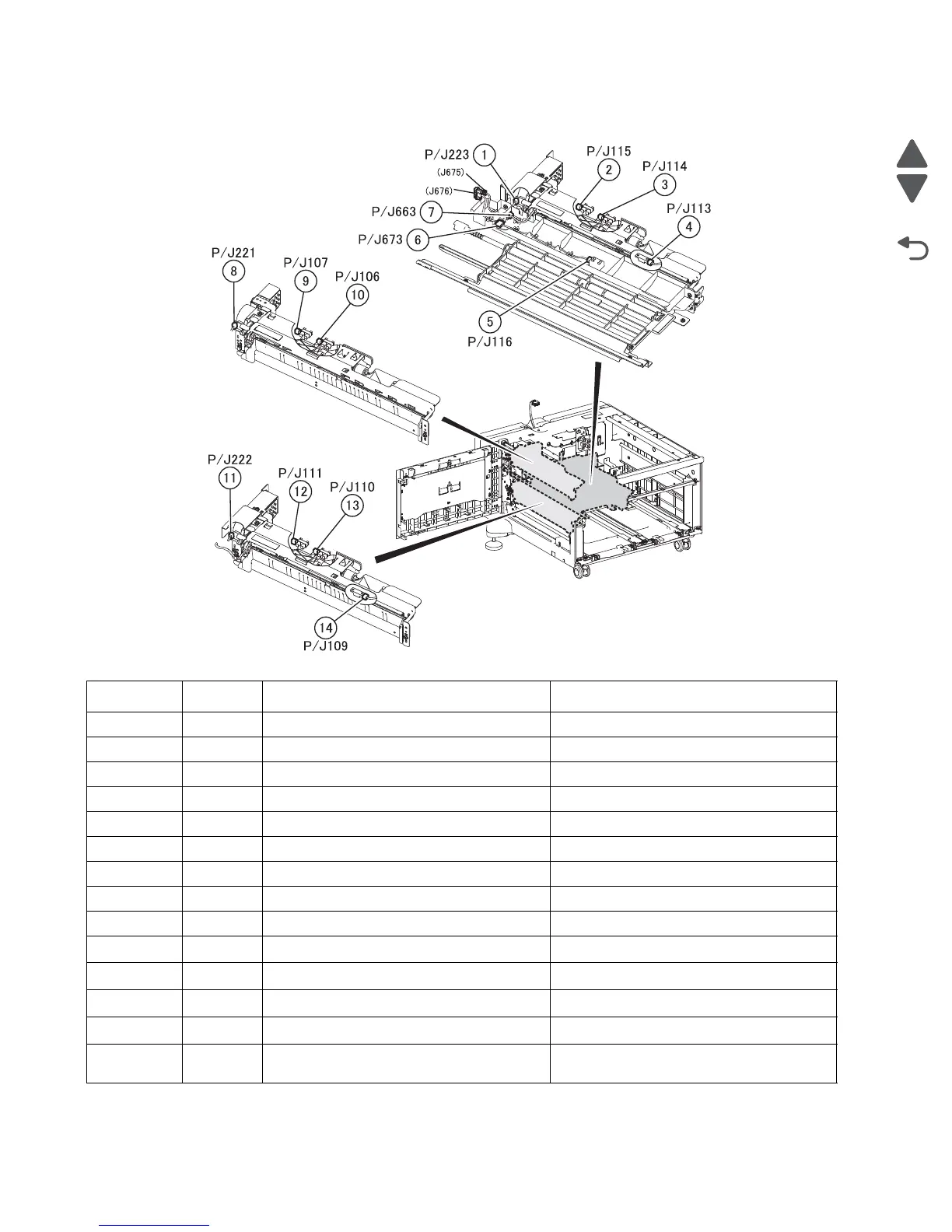

TTM—tray 2/3/4 feeder
Plug/Jack Callout Plug/jack description Connects to
P/J106 10 Media size switch PCB Tray module controller PCBA
P/J107 9 Tray 2 media level sensor Tray module controller PCBA
P/J109 14
P/J110 13 Tray 3 media out sensor Tray module controller PCBA
P/J111 12 Tray 3 media level sensor Tray module controller PCBA
P/J113 4
P/J114 3 Tray 4 media out sensor Tray module controller PCBA
P/J115 2 Tray 4 media level sensor Tray module controller PCBA
P/J116 5 Sensor (tray module feed out) Tray module controller PCBA
P/J221 8
Media feed lift motor
Tray module controller PCBA
P/J222 11
Media feed lift motor
Tray module controller PCBA
P/J223 1
Media feed lift motor
Tray module controller PCBA
P/J663 7
Media feed lift motor
Tray module controller PCBA
P/J673 6 Tray 4 media out sensor, Tray 4 media
level sensor
Tray module controller PCBA

Lexmark C950 Specifications

General

Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Processor Speed	1.2 GHz
Connectivity	Ethernet, USB
Print Technology	Laser
Print Speed	50 ppm
Monthly Duty Cycle	300000 pages
Recommended Monthly Page Volume	5, 000 - 33, 000 pages
Memory	1024 MB
Hard Drive	Optional
Output Capacity	500 sheets
Interface	USB 2.0
Media Type	Plain paper, Card stock, Labels, Envelopes, Transparencies
Total Media Capacity	5140 sheets
Media Sizes	Letter, Legal, A4, A5, Executive, Folio, Statement
Operating Systems Supported	Windows, Mac, Linux
