Repair information 4-261
5058-030

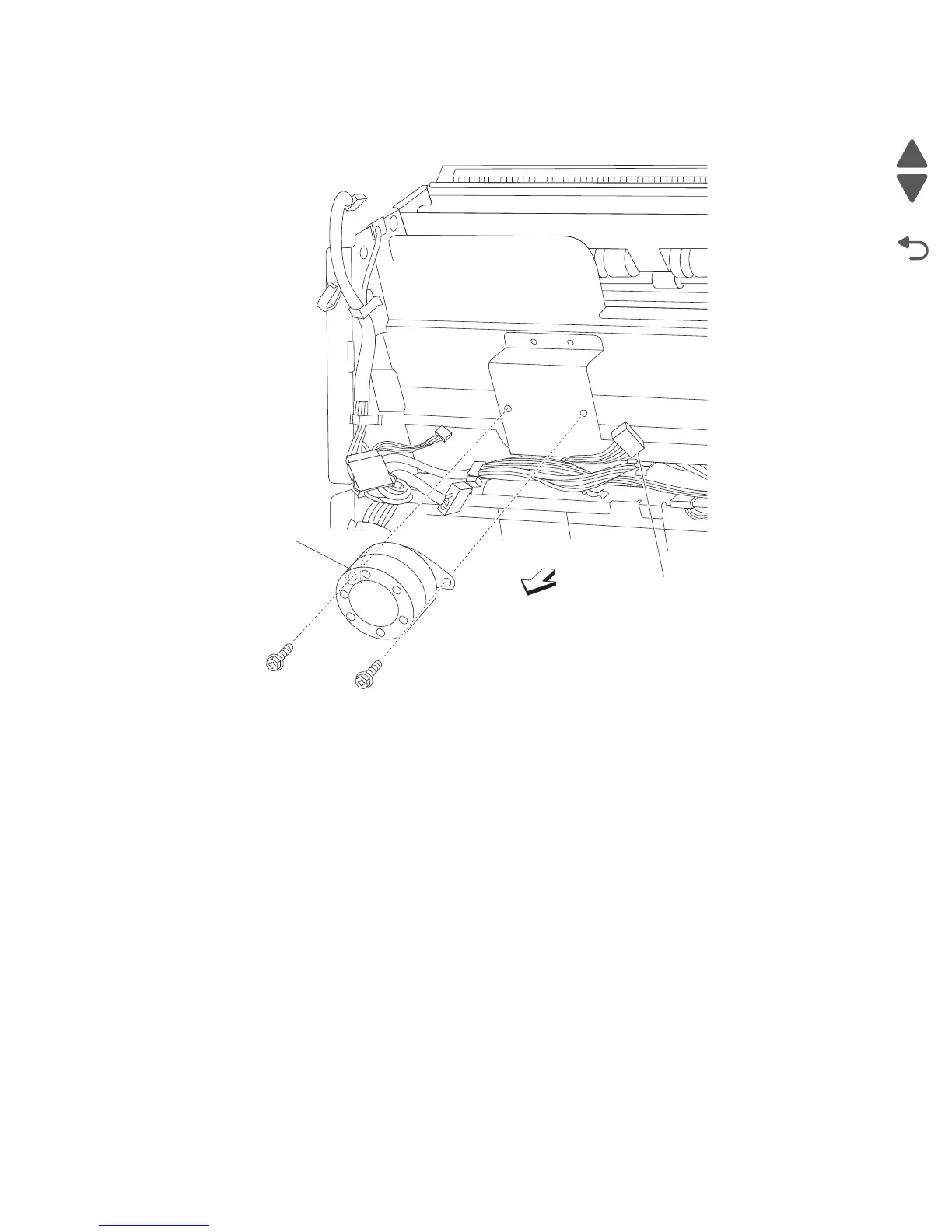

4. Remove the two screws securing the booklet rear tamper motor (A) from the tamper frame assembly.
5. Remove the booklet rear tamper motor (A).
Booklet stapler unit assembly removal
1. Open the finisher front door assembly.
2. Pull the booklet stapler unit out of the machine.
3. Release the hook securing the right ball bearing slide (A).
4. Pull the booklet stapler unit assembly (B) from the machine.
5. Remove the two screws securing the booklet stapler unit assembly (B) to the left ball bearing slide (C).
