Lexmark C950 - Assembly 5: Drive 1

7-6 Service Manual
5058-030
Go Back
Previous
Next

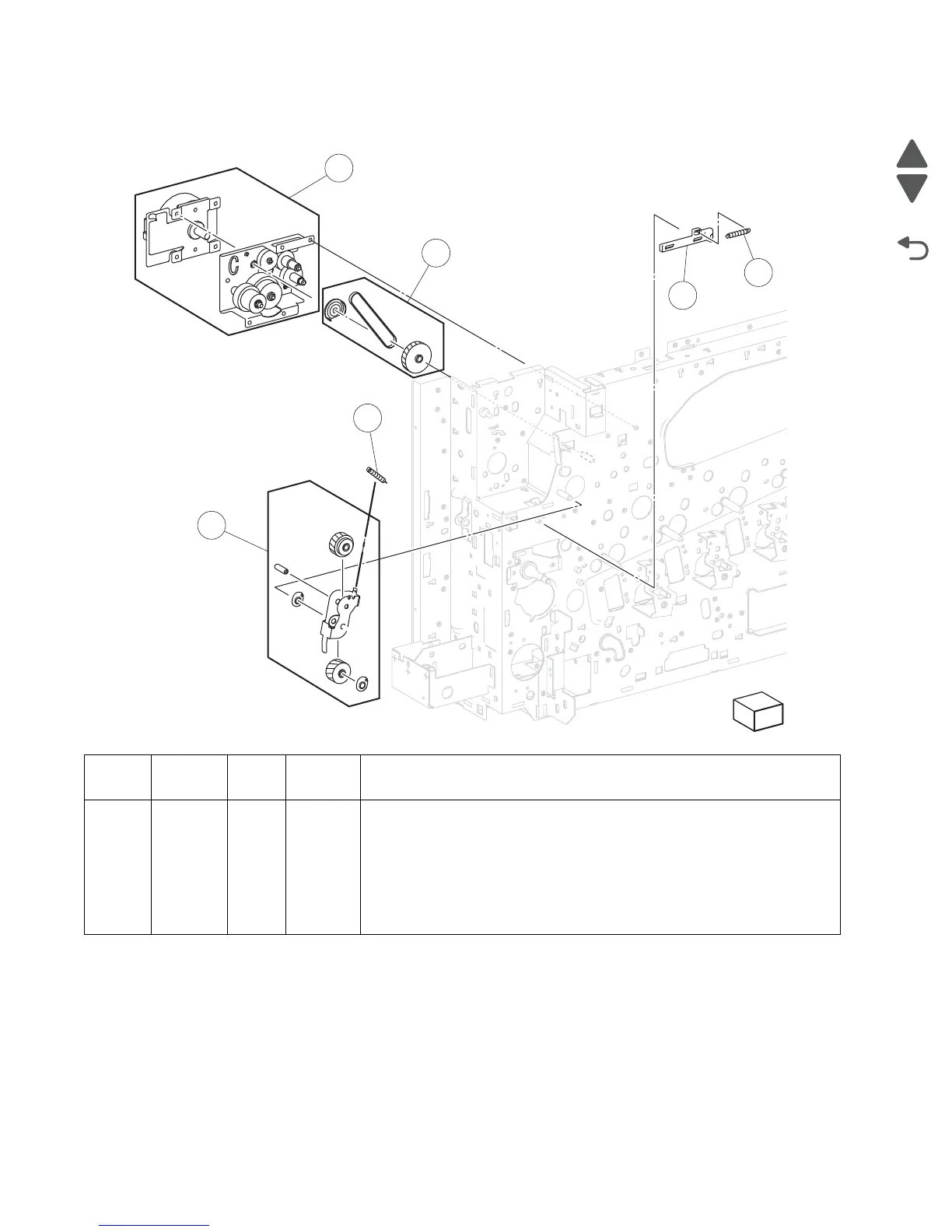

Assembly 5: Drive 1
Asm-
index
Part
number
Units/
mach
Units/
FRU
Description
5-1 40X6574 11Fuser drive/lower redrive/1st BTR retract motor
2 40X6575 11Gear 40T/23T & belt
3 40X6572 11Fuser drive release link
4 40X6573 11Fuser release link spring
5 40X6570 11Fuser drive release bracket
6 40X6571 11Spring
