Rear lower cover removal
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-309.

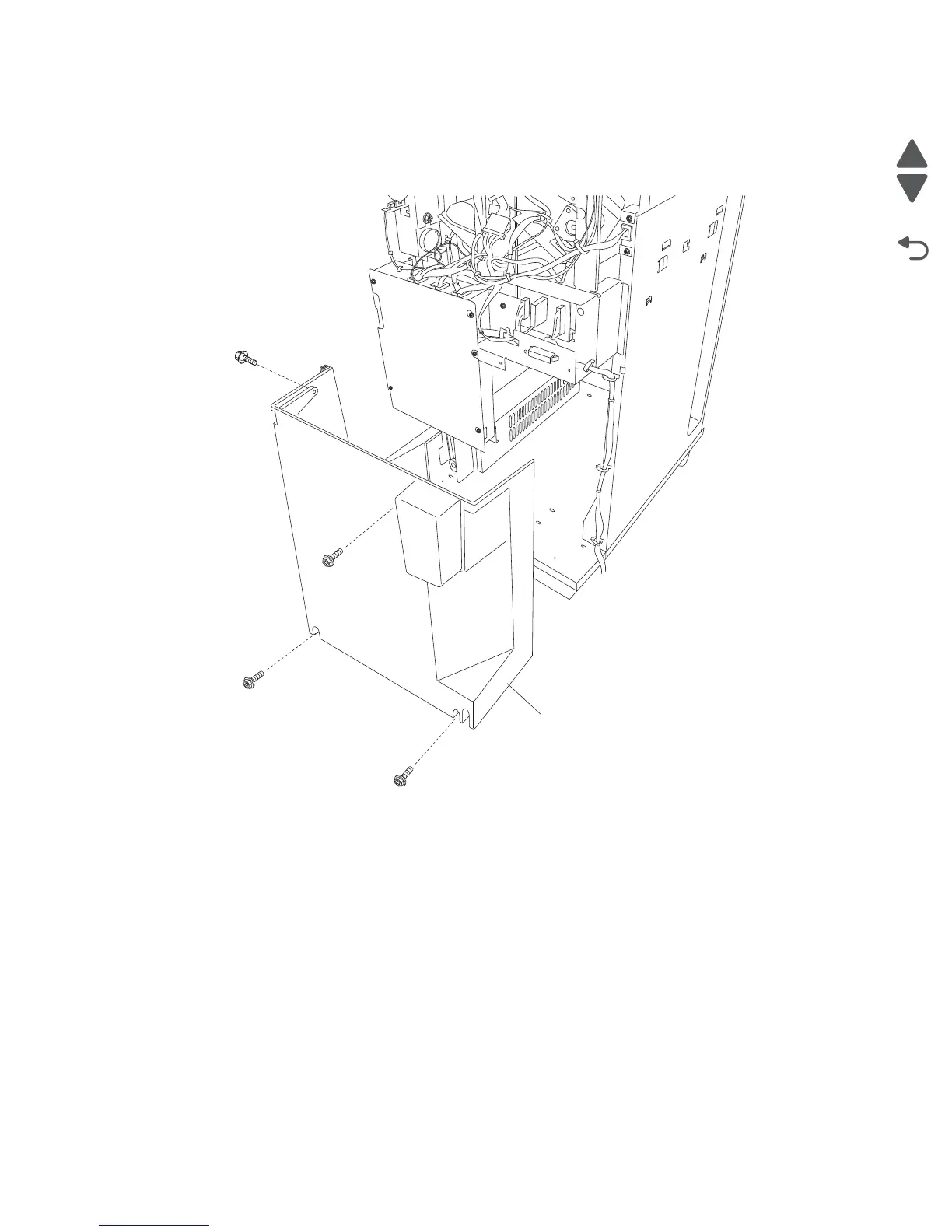

2. Remove the four screws securing the rear lower cover (A) to the finisher.
3. Remove the rear lower cover (A).
Rear upper cover removal
1. Release the hook of the bridge unit hookup cover (A) to the finisher.
2. Disconnect the bridge unit harness from the finisher.
A
