Lexmark C950 - Assembly 81: Booklet Maker 9

Parts catalog 7-85
5058-030
Go Back
Previous
Next

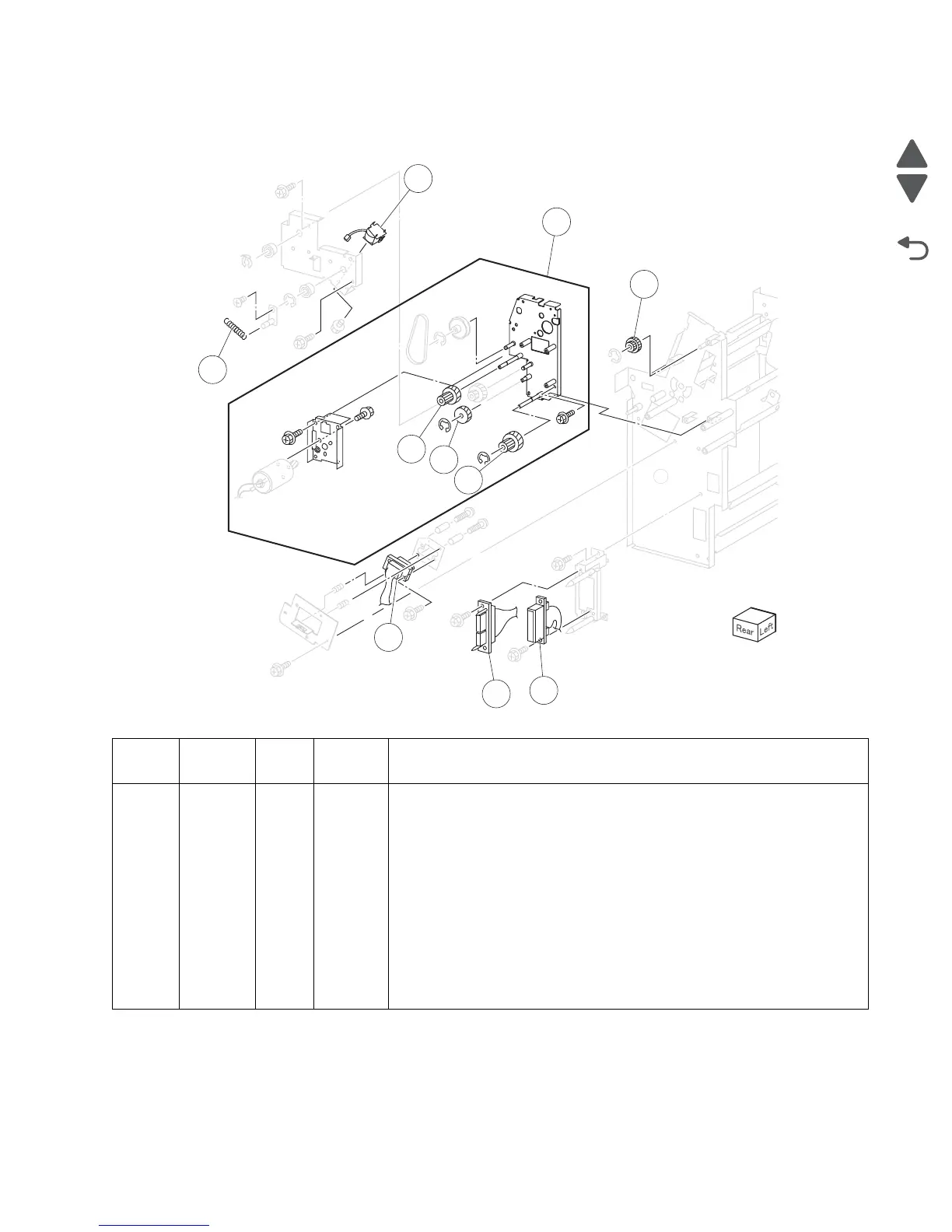

Assembly 81: Booklet maker 9
Asm-
index
Part
number
Units/
mach
Units/
FRU
Description
81-1 40X7497 11Booklet fold solenoid
2 40X7524 11Booklet rear gear bracket
3 40X4019 11Booklet gear 27/34T
4 40X4024 11Gear 18/39T
5 40X4015 11Booklet gear 45T
6 40X4017 11Booklet gear 16/44T
7 40X7501 11Booklet sensor interface cable assembly
8 40X7499 11Booklet motor interface cable assembly
9 40X7498 11Booklet stapler interface cable assembly
10 40X4020 11Spring
