Lexmark C950 - Tray Module Media Feeder Removal

4-208 Service Manual
5058-030
Go Back
Previous
Next

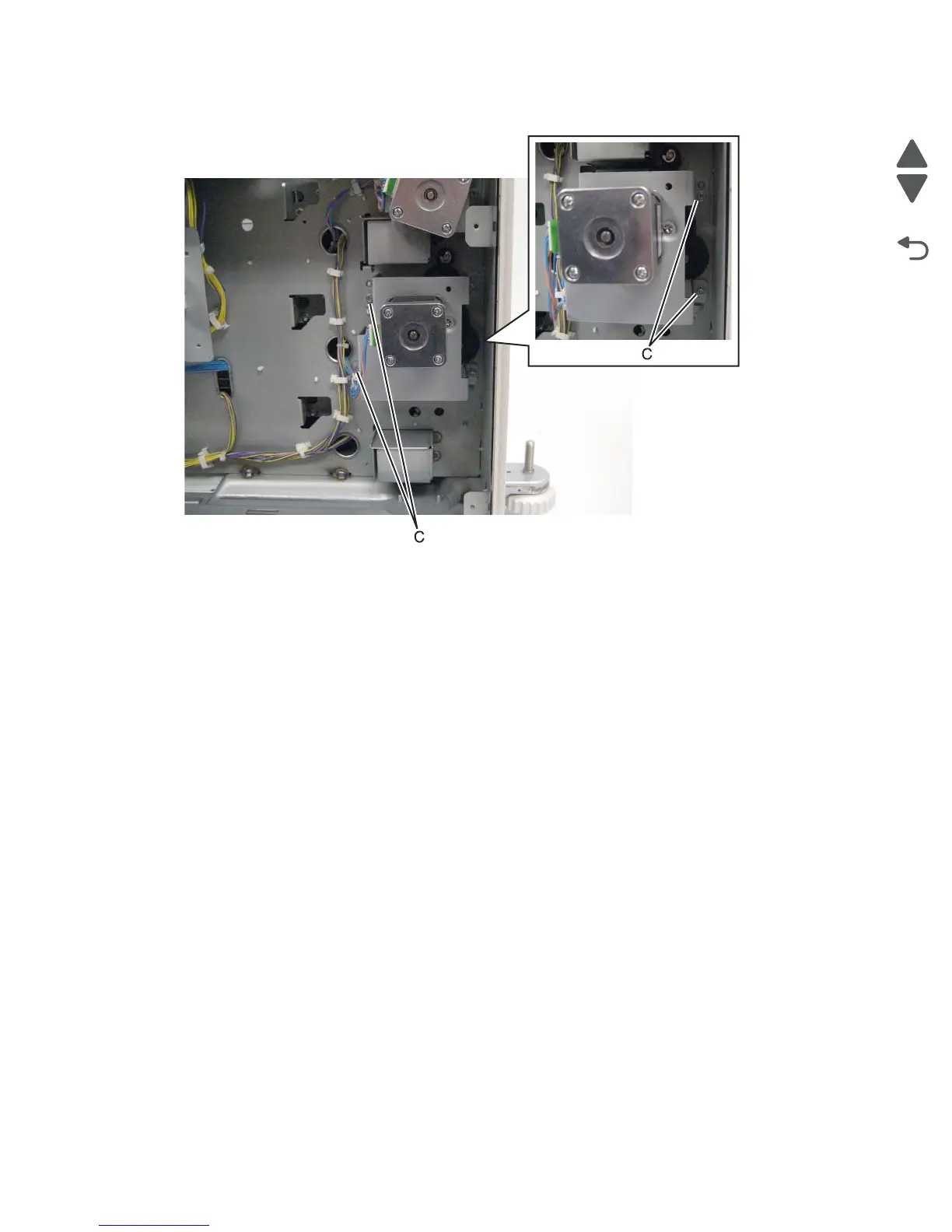

4. Remove the four screws (C).
5. Remove the tray module lower transport motor.
Tray module media feeder removal
This removal procedure can be used for the following trays:
• 1TM tray module
• 3TM tray module, tray 2
• 3TM tray module, tray 3
• 3TM tray module, tray 4
• TTM tray module, tray 2
1. Remove the media tray 2.
2. Open the left door.
