Cover removal procedures
Inner cover removal
1. Remove the printer front door. See “Printer front door removal” on page 4-10.
2. Remove the transfer belt cleaner. See “Transfer belt cleaner removal” on page 4-172.
3. Remove the waste toner box.

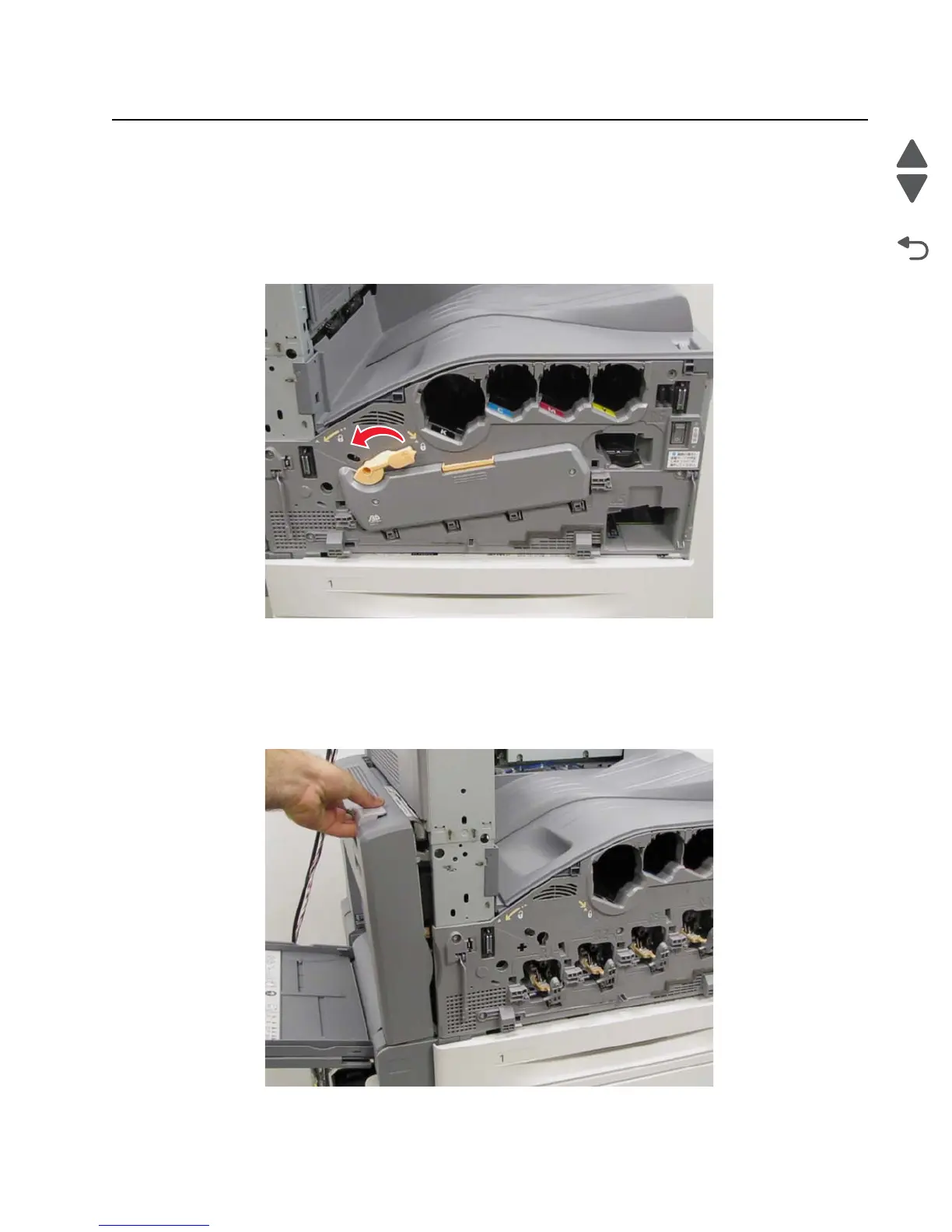

4. Rotate the transfer belt lever counterclockwise to the unlock position.
5. Open the printhead retract door.
6. Remove the four photoconductor units.
7. Remove the four toner supplies.
8. Remove the operator panel front cover.
9. Remove the printhead retract door. See “Printhead retract door removal” on page 4-139.
10. Open the printer left duplex door.
