Duplexing

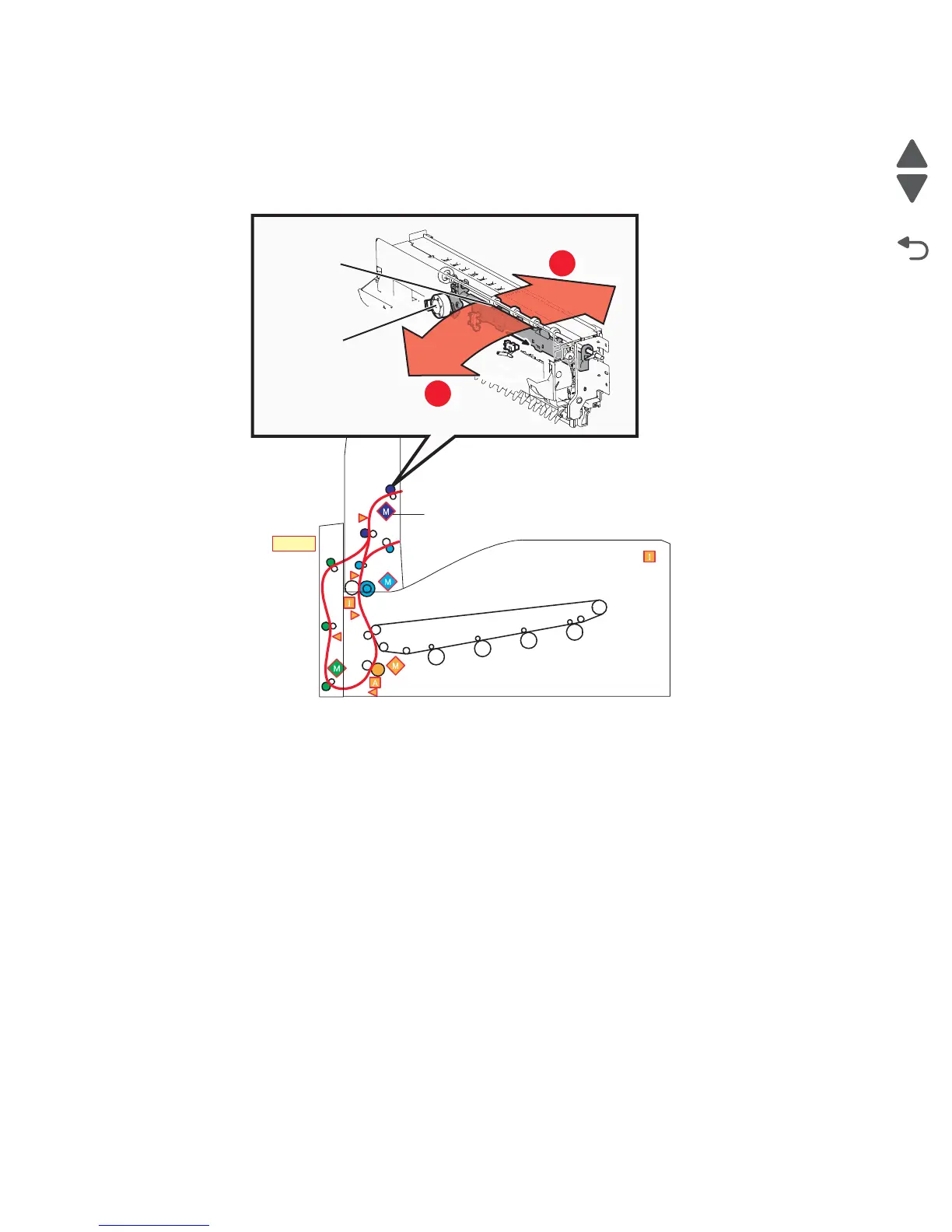

After one side of the media has finished printing, the exit rolls push the printed sheet towards the output bin (1).
Then the upper redrive motor reverses direction, pulling the sheet with its trailing edge first, towards the opposite
direction (2) into the duplexing area.
DUPLEX
Exit rolls
Upper redrive
motor
2
1
Upper redrive
motor
