Lexmark C950 - Toner Smart Chip PCB Removal

4-166 Service Manual
5058-030
Go Back
Previous
Next

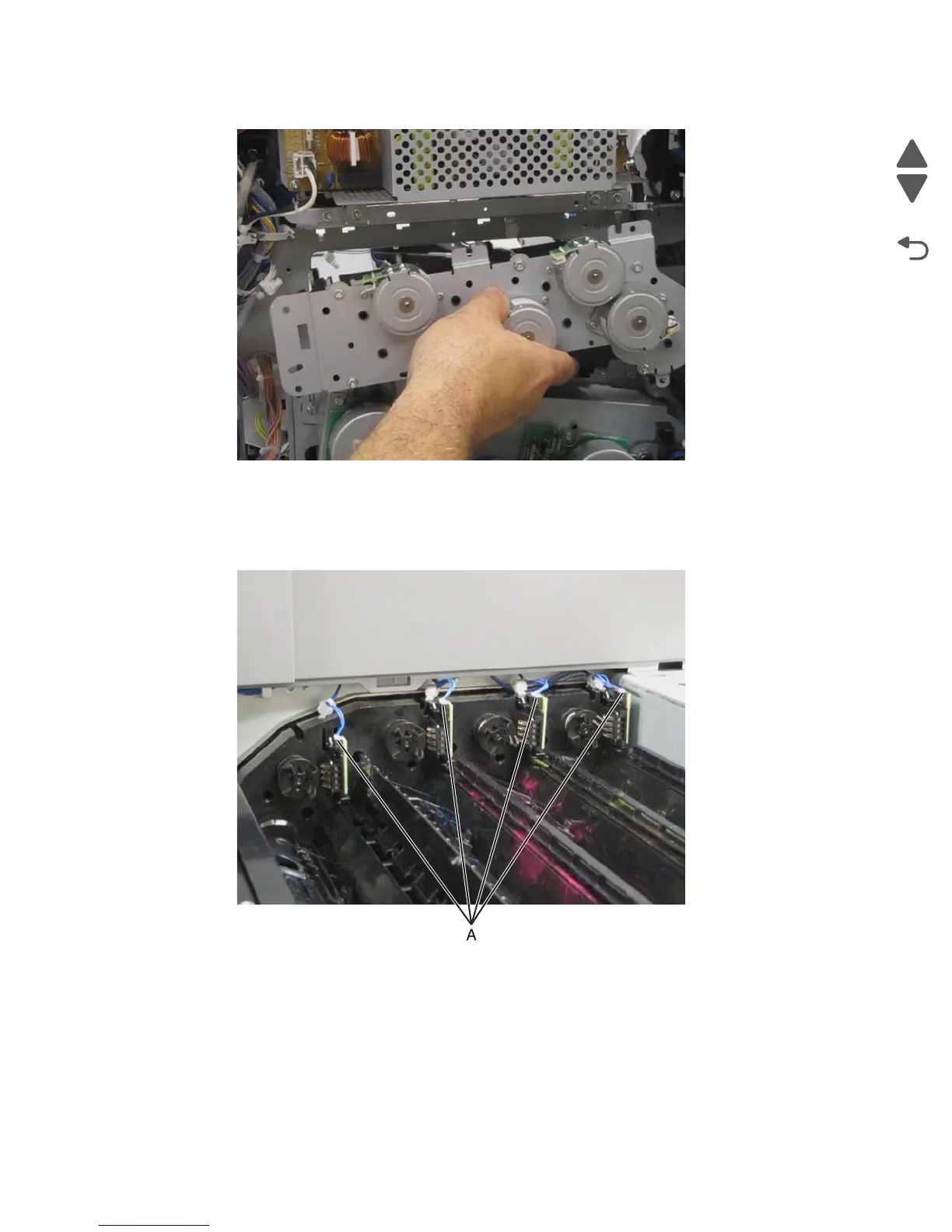

18. From the rear side of the printer, disengage the toner dispense motor and remove.
Toner smart chip PCB removal
1. Remove the top cover. See “Printer top cover removal” on page 4-12.
2. Remove the cable (A) from the toner smart chip PCB that will be removed.
