Lexmark C950 - Booklet Media Entrance Drive Motor Removal

Repair information 4-257
5058-030
Go Back
Previous
Next

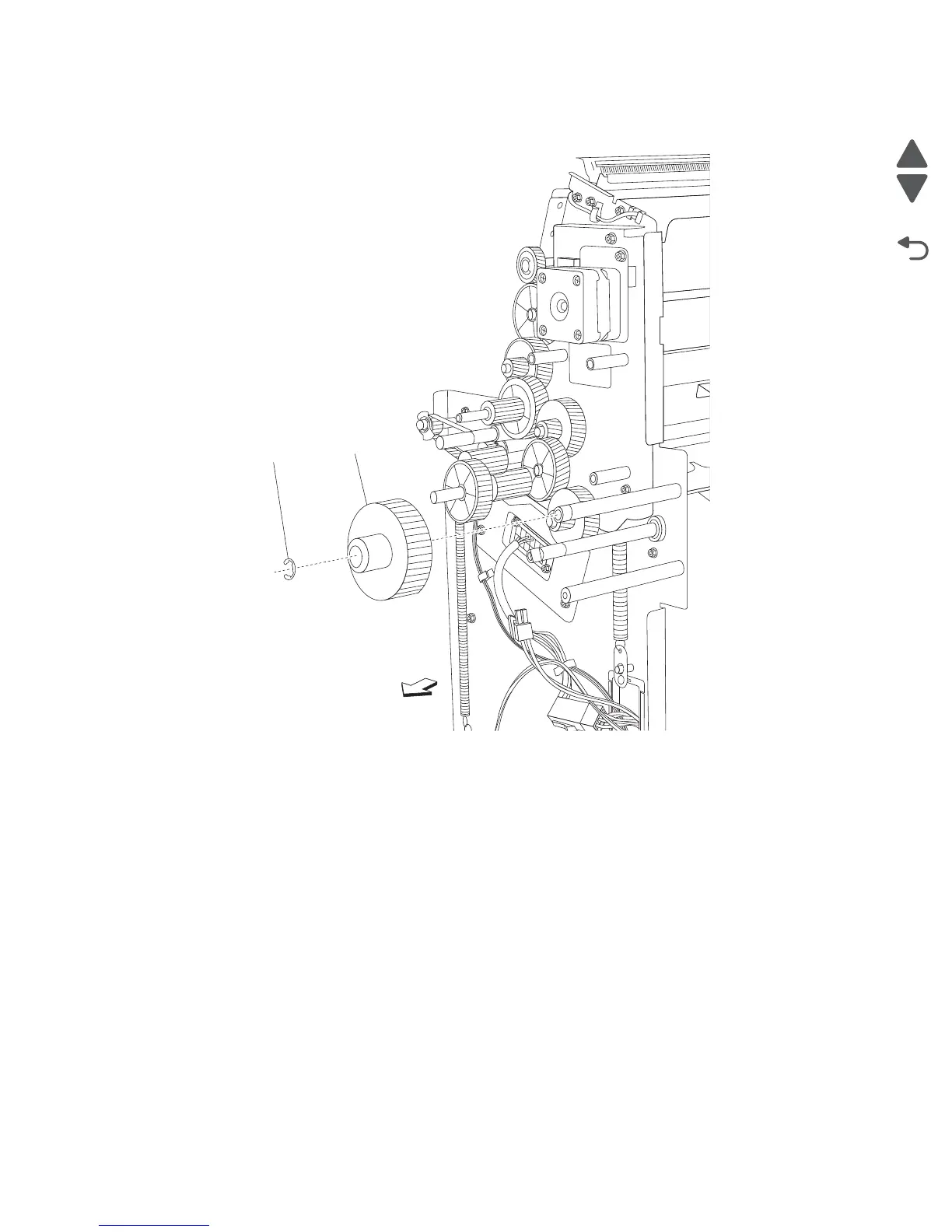

4. Remove the e-clip.
5. Remove the booklet knife sector drive gear 42T (A).
Booklet media entrance drive motor removal
1. Remove the booklet unit assembly. See “Booklet unit chassis removal” on page 4-263.
2. Remove the screws securing the booklet media entrance drive motor cover from the booklet unit.
3. Remove the booklet media entrance drive motor cover.
4. Disconnect the connectors from the booklet media entrance drive motor (A).
5. Remove the two screws securing the booklet media transport from the knife solenoid frame.
B
A
Rear
