Repair information 4-369
5058-030
Go Back
Previous
Next
HCF pick roll assembly removal
1. Open the HCF top door.
2. Open the HCF feed unit assembly.

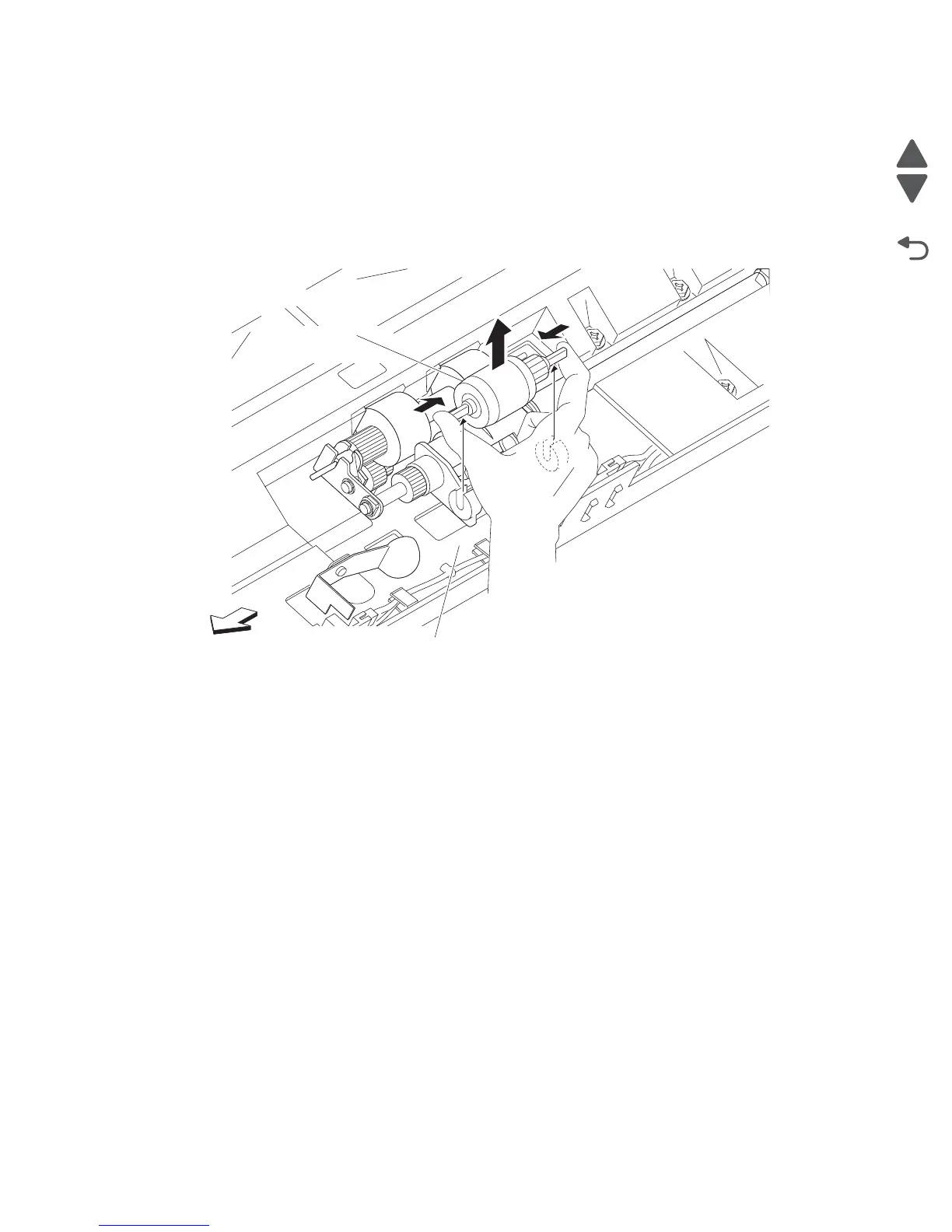

3. Push the two ends of the HCF pick roll assembly (A) inward, and move it upward in the direction of the
arrow to release it from the HCF media feed unit assembly (B).
4. Remove the HCF pick roll assembly (A).
Note: When removing the HCF pick roll assembly (A), do not touch the rubber surface.
Note: Before re-installing the HCF pick roll assembly (A), do not touch the rubber surface.
HCF pick roll shaft assembly removal
1. Open the HCF top door.
2. Open the HCF feed unit assembly.
3. Remove the HCF pick roll assembly. See “HCF pick roll assembly removal” on page 4-369.
4. Use a prying tool to remove the e-clip securing the HCF pick roll shaft assembly (A) to the HCF media feed
unit assembly (B).
5. Remove the bushing (C) from the HCF media feed unit assembly (B).
6. Remove the bearing (D) from the HCF media feed unit assembly (B).
A
B
Front
