Lexmark C950 Service Manual

5-22 Service Manual
5058-030
Go Back
Previous
Next

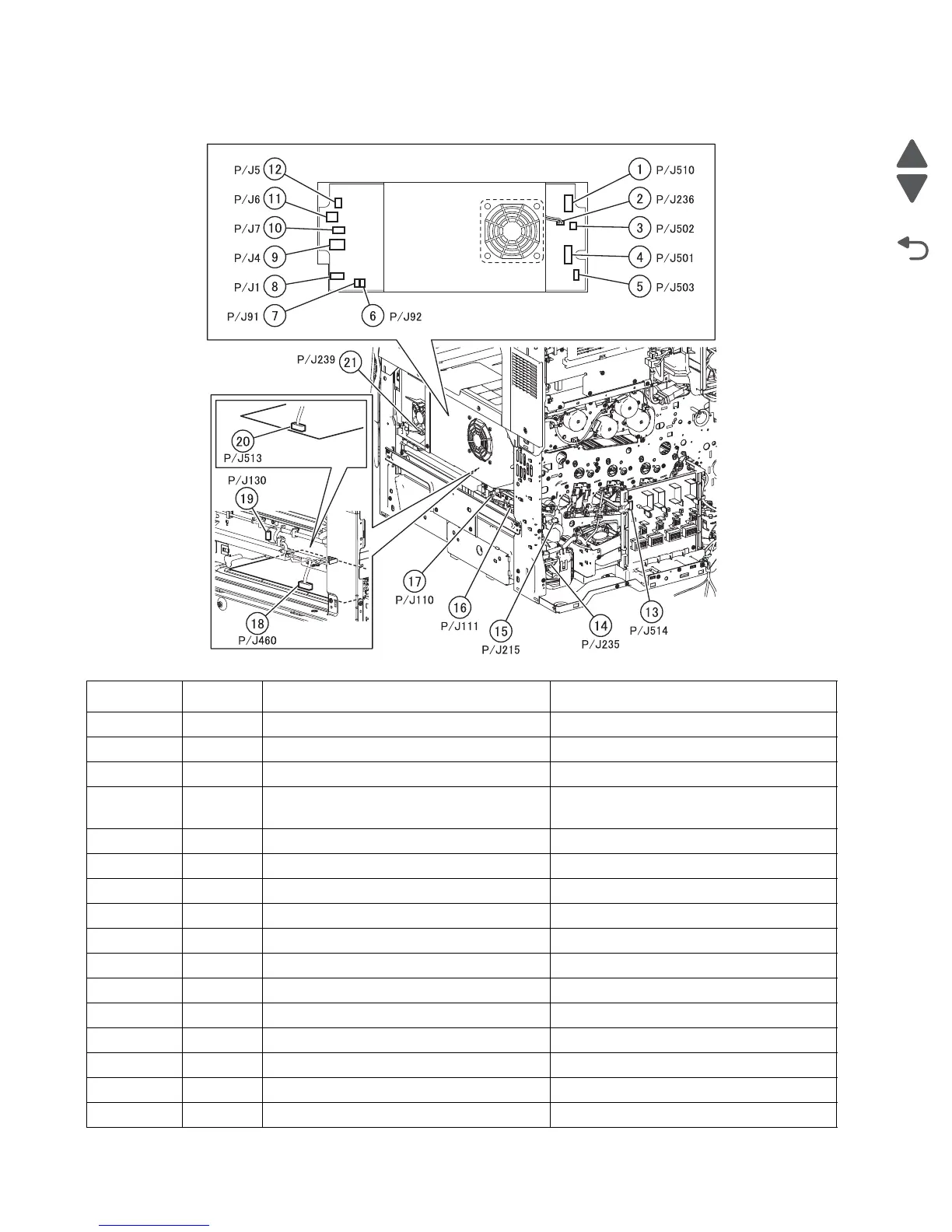

LVPS, HVPS, and waste toner agitator motor
Plug/Jack Callout Plug/jack description Connects to
P/J1 8 LVPS PCBA Main power GFI interface
P/J4 9 LVPS PCBA Main power switch
P/J5 12 LVPS PCBA Main power GFI interface
P/J6 11 LVPS PCBA • Fuser driver PCBA
• Sub LVPS PCBA
P/J7 10 LVPS PCBA Main power GFI interface
P/J91 7
P/J92 6
P/J110 17 Waste toner sensor guide Upper engine PCBA
P/J111 16 Waste toner sensor guide Upper engine PCBA
P/J130 19
P/J215 15 Waste toner agitator motor Lower engine PCBA
P/J235 14 Charge roll HVPS cooling fan Upper engine PCBA
P/J236 2 LVPS Fan
P/J239 21 LVPS sub cooling fan Lower engine PCBA
P/J460 18 HVPS (DEVE/BCR)
P/J501 4

Lexmark C950 Specifications

General

Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Processor Speed	1.2 GHz
Connectivity	Ethernet, USB
Print Technology	Laser
Print Speed	50 ppm
Monthly Duty Cycle	300000 pages
Recommended Monthly Page Volume	5, 000 - 33, 000 pages
Memory	1024 MB
Hard Drive	Optional
Output Capacity	500 sheets
Interface	USB 2.0
Media Type	Plain paper, Card stock, Labels, Envelopes, Transparencies
Total Media Capacity	5140 sheets
Media Sizes	Letter, Legal, A4, A5, Executive, Folio, Statement
Operating Systems Supported	Windows, Mac, Linux
