Lexmark C950 - Sensor (Printer Left Duplex Door Interlock) Removal

4-152 Service Manual
5058-030
Go Back
Previous
Next
Sensor (printer left duplex door interlock) removal

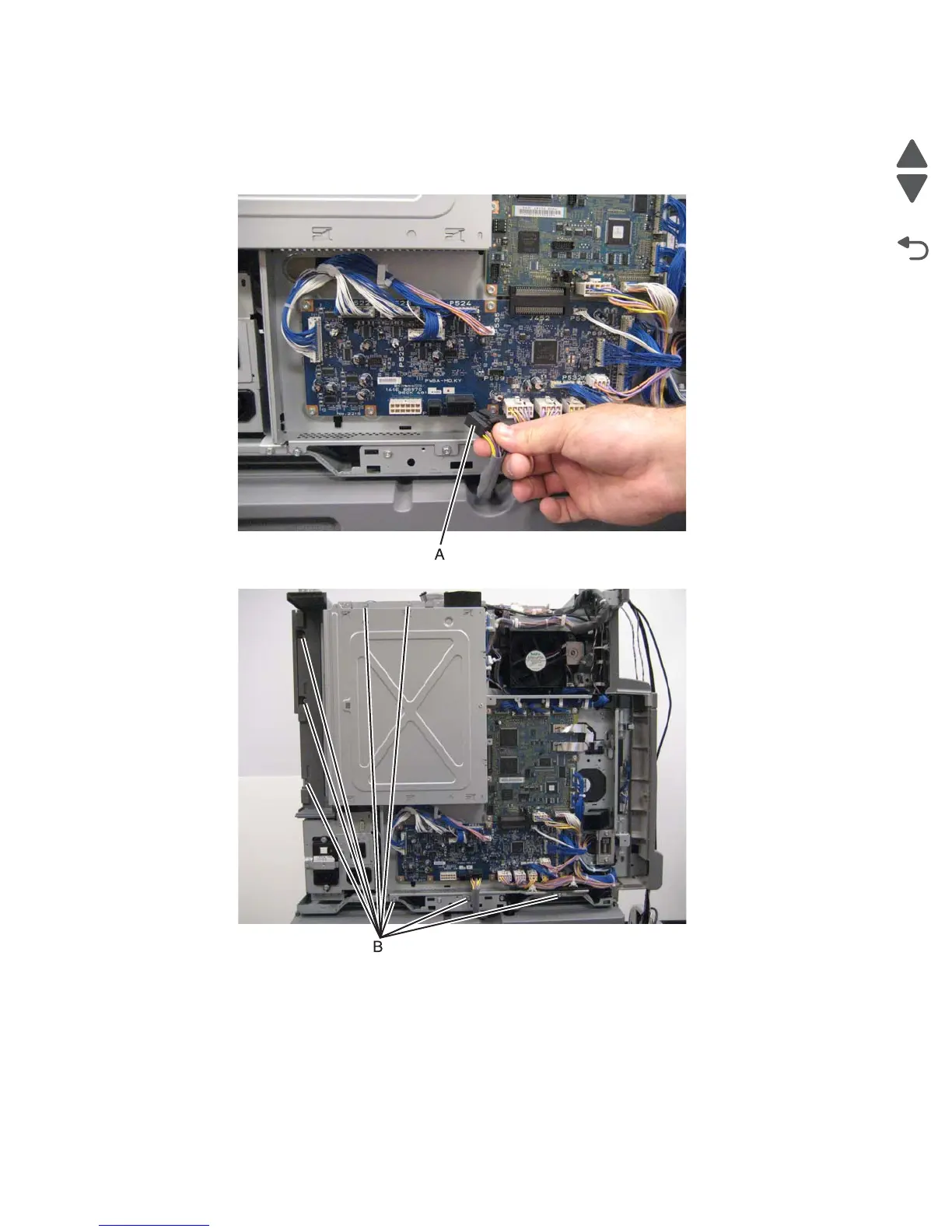

1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-16.
2. Disconnect the input option cable (A).
3. Remove the eight screws (B) securing the PCBA door to the machine.
