Lexmark C950 - Developer Housing (K) Removal

Repair information 4-51
5058-030
Go Back
Previous
Next
• Move the appropriate wiper in and out to clean the printhead.
Developer housing (K) removal
1. Remove the printer front door. See “Printer front door removal” on page 4-10.
2. Remove the transfer belt cleaner. See “Transfer belt cleaner removal” on page 4-172.
3. Remove the waste toner box.
4. Remove the four photoconductor units.
5. Remove the four toner supplies.
6. Remove the operator panel front cover.
7. Remove the printhead retract door. See “Printhead retract door removal” on page 4-139.
8. Remove the inner cover. See “Inner cover removal” on page 4-3.
9. Remove the inner plate. See “Inner plate removal” on page 4-92.
10. Remove the ATC sensor PCB bracket. See “ATC sensor PCB bracket removal” on page 4-25.
11. Remove the waste toner auger chute. See “Waste toner auger chute removal” on page 4-188.

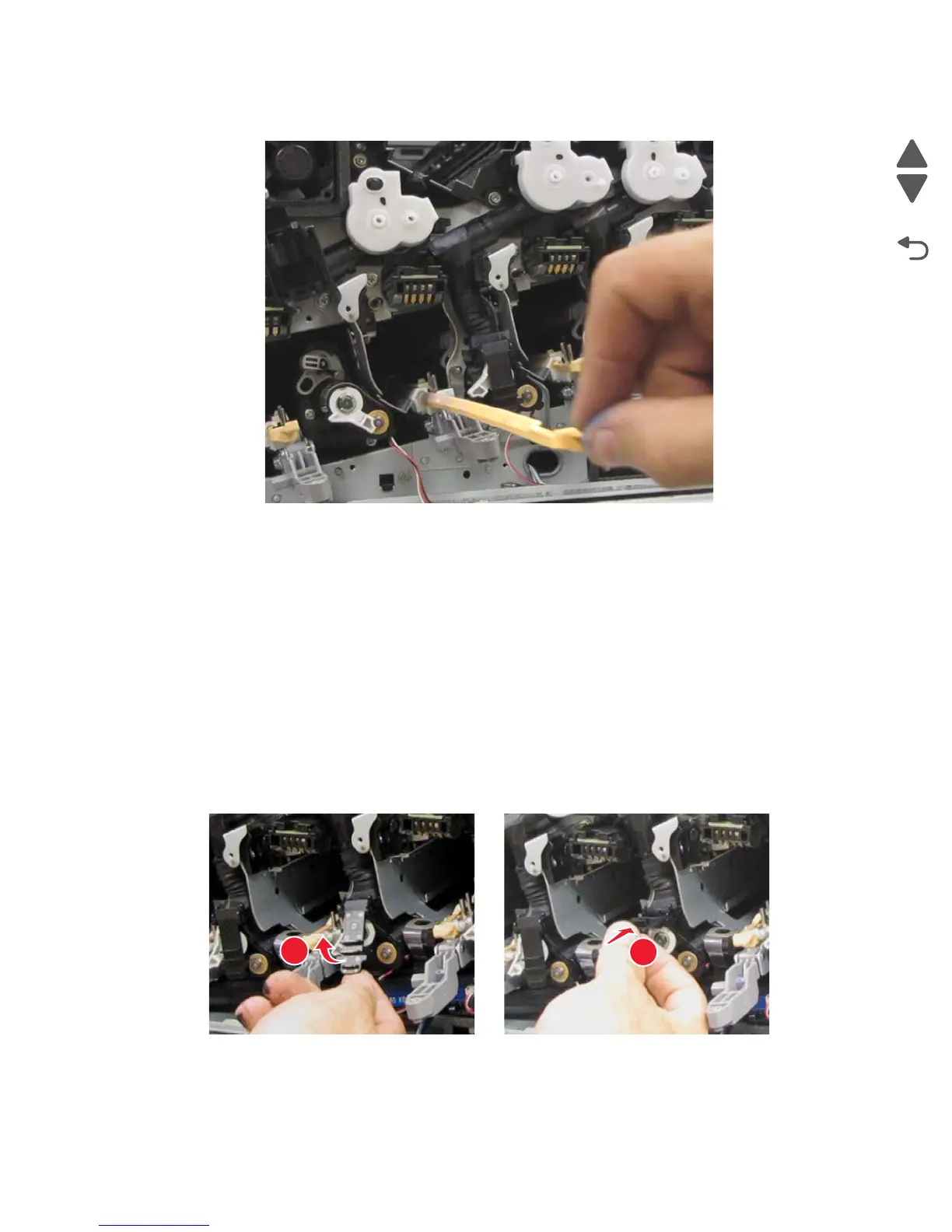

12. Lift the appropriate plastic gate, and push it in to reduce toner spillage.
1
2
