Tray module tray 2 media turn guide removal
1. Open the left door.

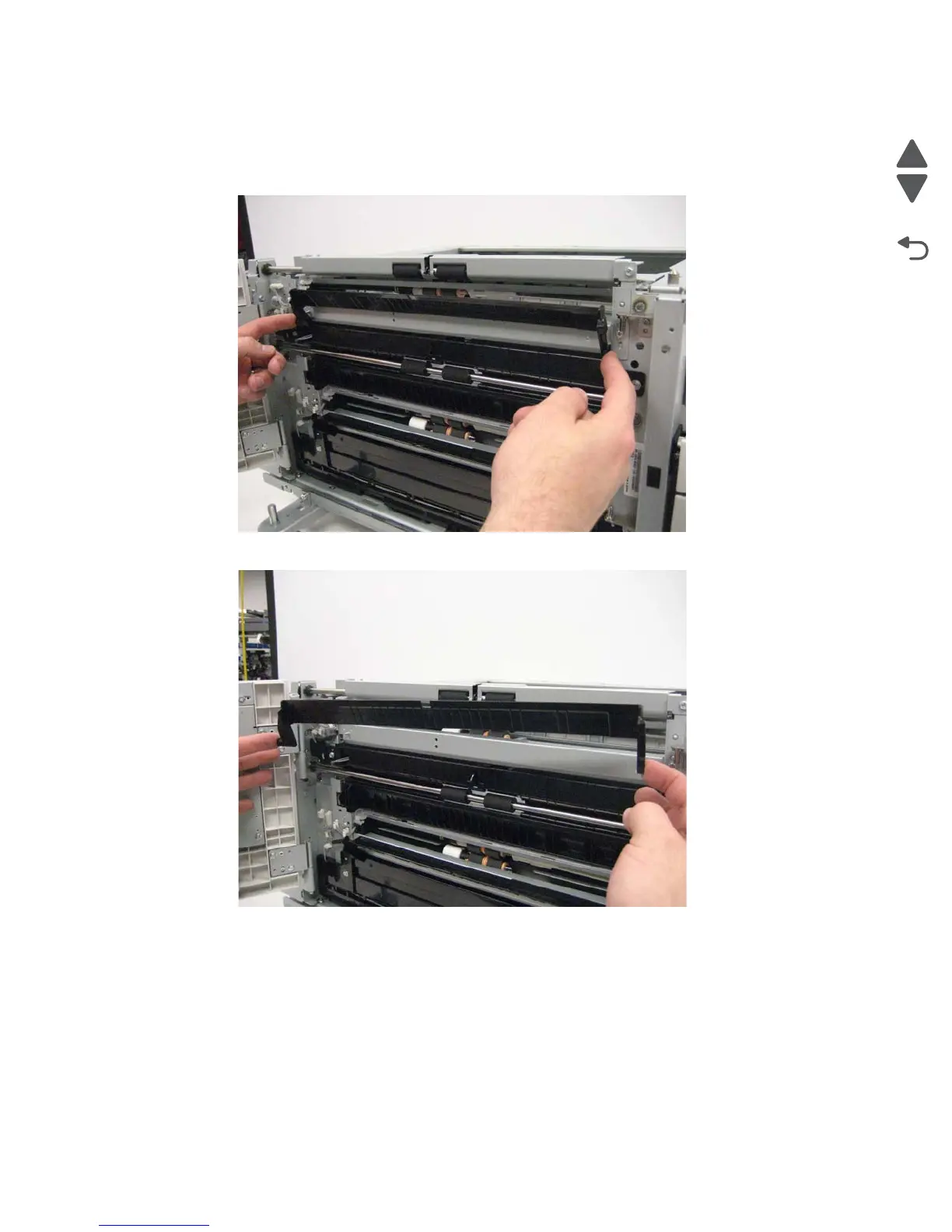

2. Gently press the lower edges of the tray module 2 media turn guide.
3. Remove the tray module 2 media turn guide from the machine.
Tray module upper transport motor removal
This removal procedure is not applicable to TTM tray modules.
1. Remove the tray module rear cover. See “Tray module rear cover removal” on page 4-211.
2. Disconnect the cable (A).
3. Release the harness from the clamp (B).
