Finisher—booklet maker 2

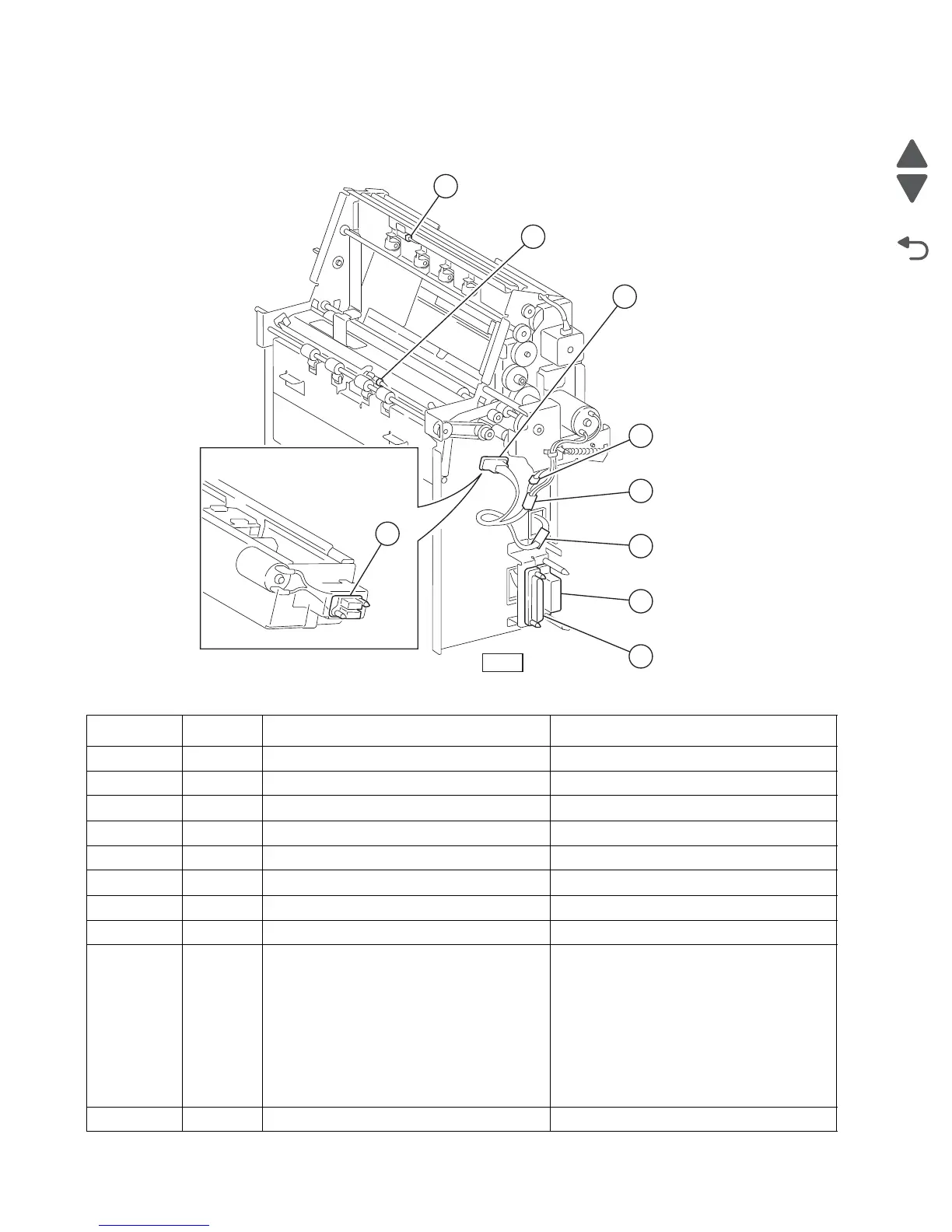

Plug/Jack Callout Plug/jack description Connects to
P/J8175 5 Booklet folding/exit motor Booklet controller card assembly
P/J8181A 4 Booklet fold solenoid Booklet controller card assembly
P/J8181B 4 Booklet fold solenoid Booklet controller card assembly
P/J8182 1 Sensor (booklet media exit) Booklet controller card assembly
P/J8183 2 Sensor (booklet media entrance) Booklet controller card assembly
P/J8189 6 Booklet stapler unit assembly Booklet controller card assembly
P8201 3 Booklet stapler unit assembly Booklet controller card assembly
J8201 9 Booklet stapler unit assembly Booklet controller card assembly
P8202 7 Booklet controller card assembly • Booklet fold solenoid
• Sensor (booklet knife HP)
• Sensor (booklet knife folding)
• Booklet folding/exit motor
• Sensor (booklet media exit)
• Sensor (booklet media entrance)
• Sensor (booklet rear tamper HP)
• Sensor (booklet front tamper HP)
• Sensor (booklet end guide HP)
P8203 8 Booklet controller card assembly Booklet stapler unit assembly
Re a r
P/ J8182
1
P/ J8183
2
P8201
3
P/ J8181A
4
P/ J8181B
5
P/ J8175
6
P/ J8189
7
P8202
8
P8203
9
P8201
booklet Stapler Unit
