Lexmark C950 Service Manual

Connector locations 5-13
5058-030
Go Back
Previous
Next

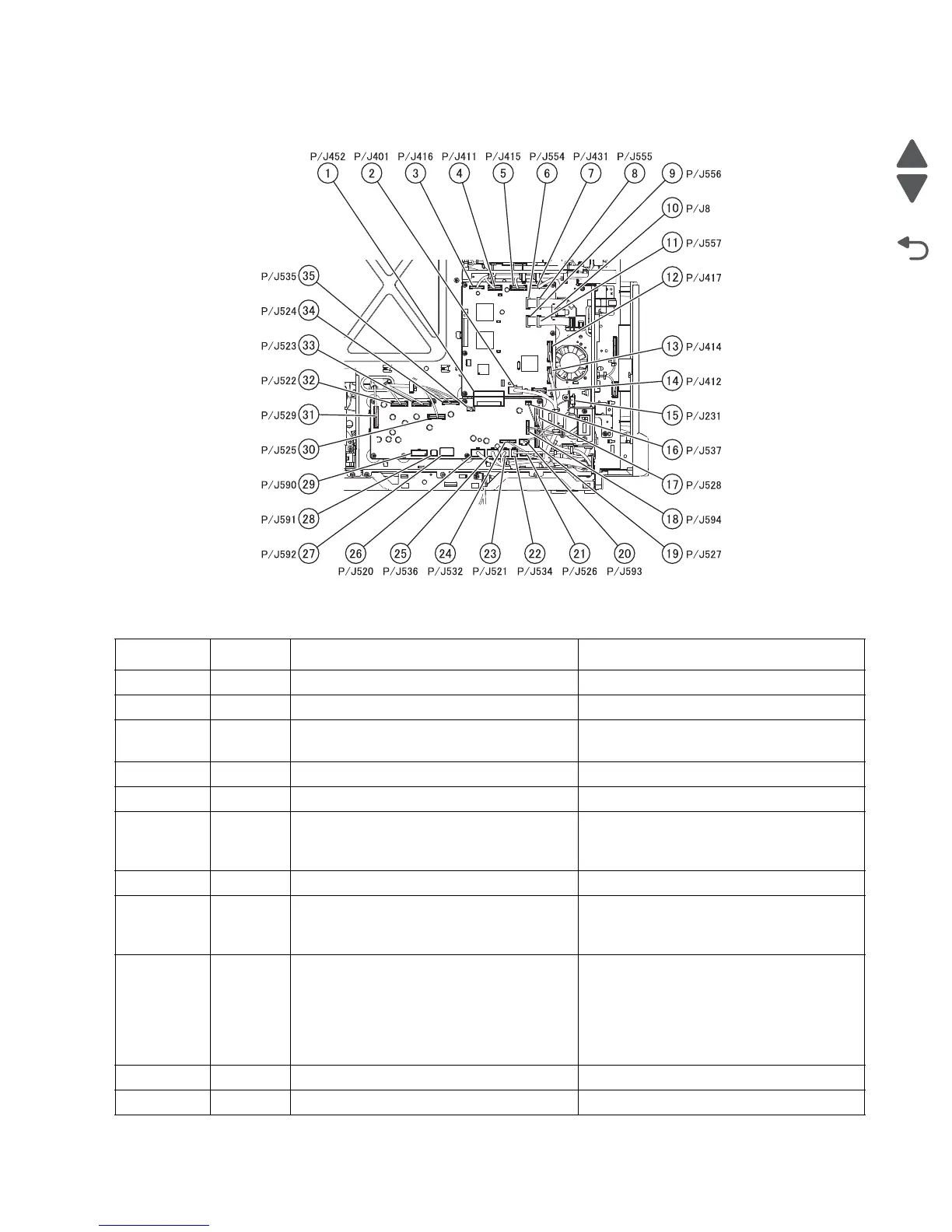

Upper/lower engine PCBA
Plug/Jack Callout Plug/jack description Connects to
P/J8 10 Sub LVPS PCBA LVPS PCBA
P/J231 15 Suction fan Upper engine PCBA
P/J401 2 Upper engine PCBA • LVPS PCBA
•Power switch
P/J411 4 Upper engine PCBA Toner smart chip PCB
P/J412 14 Upper engine PCBA Charge roll HVPS PCBA
P/J414 13 Upper engine PCBA • Transfer roll HVPS PCBA
• Fuser driver PCBA
• Upper exhaust fan
P/J415 5 Upper engine PCBA Sensor (image calibration)
P/J416 3 Upper engine PCBA • Front door sensor
• Front left cooling fan
• Front upper cooling fan
P/J417 12 Upper engine PCBA • Media size switch PCB
• 1st transfer retract clutch assembly
• Waste toner sensor guide
• Suction fan
• Charge roll HVPS cooling fan
• PC/developer drive motor cooling fan
P/J431 7 Upper engine PCBA Fuser assembly
P/J452 1 Lower engine PCBA Upper engine PCBA

Lexmark C950 Specifications

General

Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Processor Speed	1.2 GHz
Connectivity	Ethernet, USB
Print Technology	Laser
Print Speed	50 ppm
Monthly Duty Cycle	300000 pages
Recommended Monthly Page Volume	5, 000 - 33, 000 pages
Memory	1024 MB
Hard Drive	Optional
Output Capacity	500 sheets
Interface	USB 2.0
Media Type	Plain paper, Card stock, Labels, Envelopes, Transparencies
Total Media Capacity	5140 sheets
Media Sizes	Letter, Legal, A4, A5, Executive, Folio, Statement
Operating Systems Supported	Windows, Mac, Linux
