Lexmark C950 - TTM-Left

To Next Page

To Previous Page

Connector locations 5-29

5058-030

Go Back

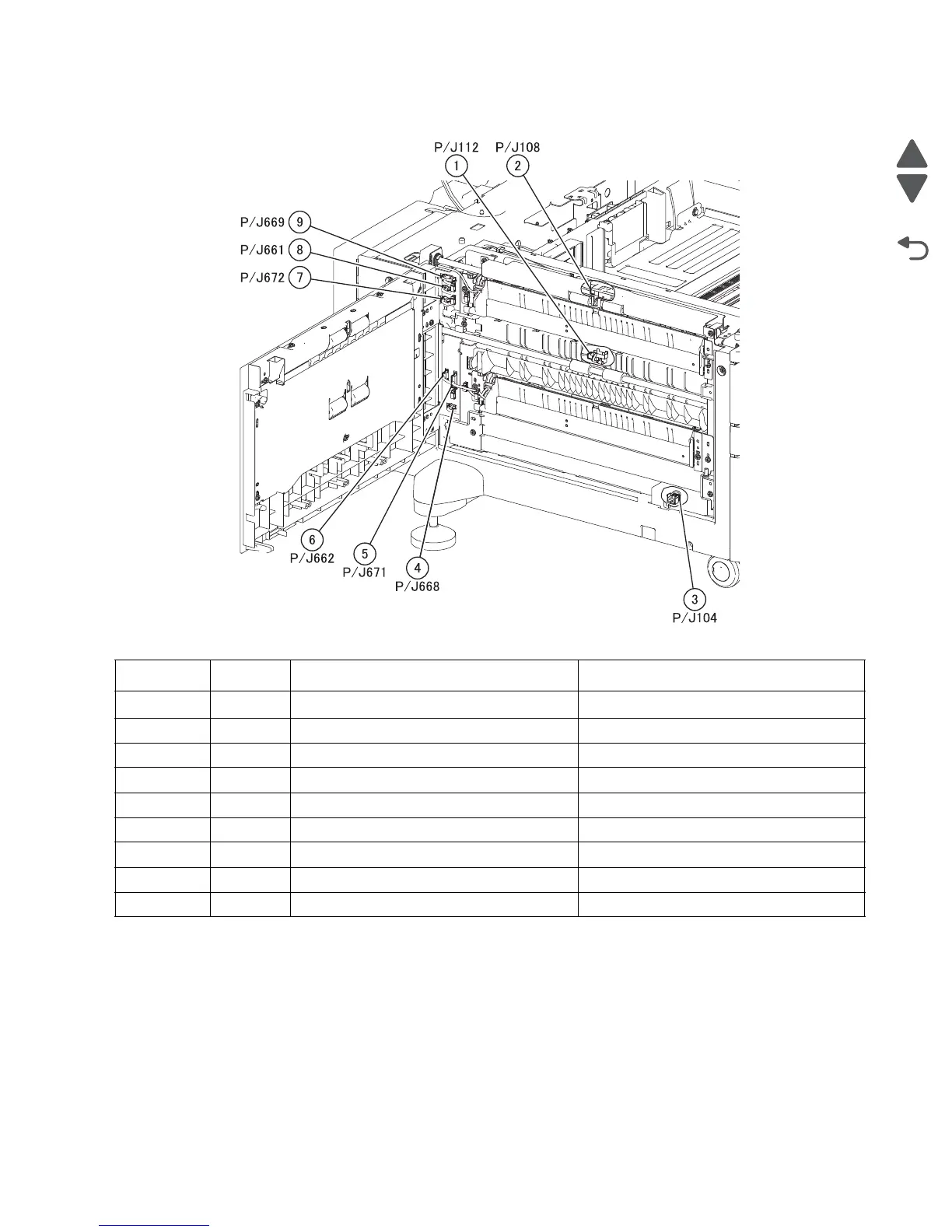

TTM—left

Plug/Jack Callout Plug/jack description Connects to

P/J104 3

Sensor (tray module left door interlock)

Tray module controller PCBA

P/J108 2 Sensor (tray module feed out) Tray module controller PCBA

P/J112 1 Sensor (tray module feed out) Tray module controller PCBA

P/J661 8 Media feed lift motor Tray module controller PCBA

P/J662 6 Media feed lift motor Tray module controller PCBA

P/J668 4 Sensor (tray module left door interlock) Tray module controller PCBA

P/J669 9 Tray 2 media level sensor Tray module controller PCBA

P/J671 5 Tray 3 media level sensor Tray module controller PCBA

P/J672 7 Sensor (tray module feed out) Tray module controller PCBA
