5-36 Service Manual

5058-030

Go Back

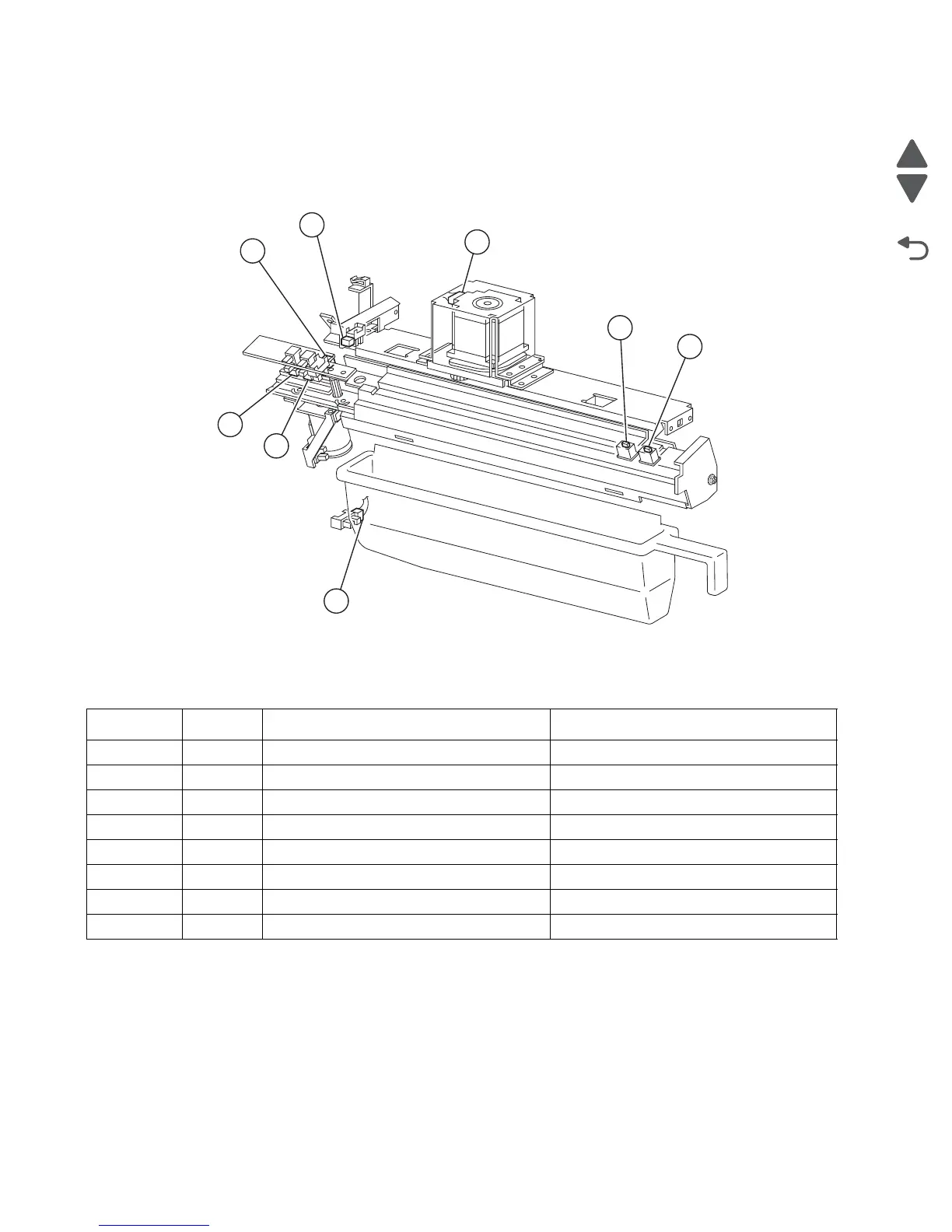

Finisher—punch unit

Plug/Jack Callout Plug/jack description Connects to

P/J8344 3 Punch carriage shift motor Finisher controller PCBA

P/J8346 8 Punch unit frame Finisher controller PCBA

P/J8347 7 Punch unit frame Finisher controller PCBA

P/J8348 1 Punch unit frame Finisher controller PCBA

P/J8350 5 Sensor (punch unit side reg 1) Finisher controller PCBA

P/J8351 4 Sensor (punch unit side reg 2) Finisher controller PCBA

P/J8352 2 Punch unit frame Finisher controller PCBA

P/J8353 6 Punch waste box bottle Finisher controller PCBA

P/ J8348

P/ J8352

P/ J8344

P/ J8351

P/ J8350

P/ J8346

P/ J8347

P/ J8353
