Lexmark C950 - Sensor (Booklet Knife HP) Removal

4-314 Service Manual
5058-030
Go Back
Previous
Next
5. Remove sensor (booklet knife folding) (A).
Sensor (booklet knife HP) removal
1. Remove the booklet unit assembly. See “Booklet unit chassis removal” on page 4-263.
2. Remove the booklet unit assembly left cover. See “Booklet unit assembly left cover removal” on
page 4-262.
3. Rotate knife sector gear clockwise until the flag is in the folding sensor position.

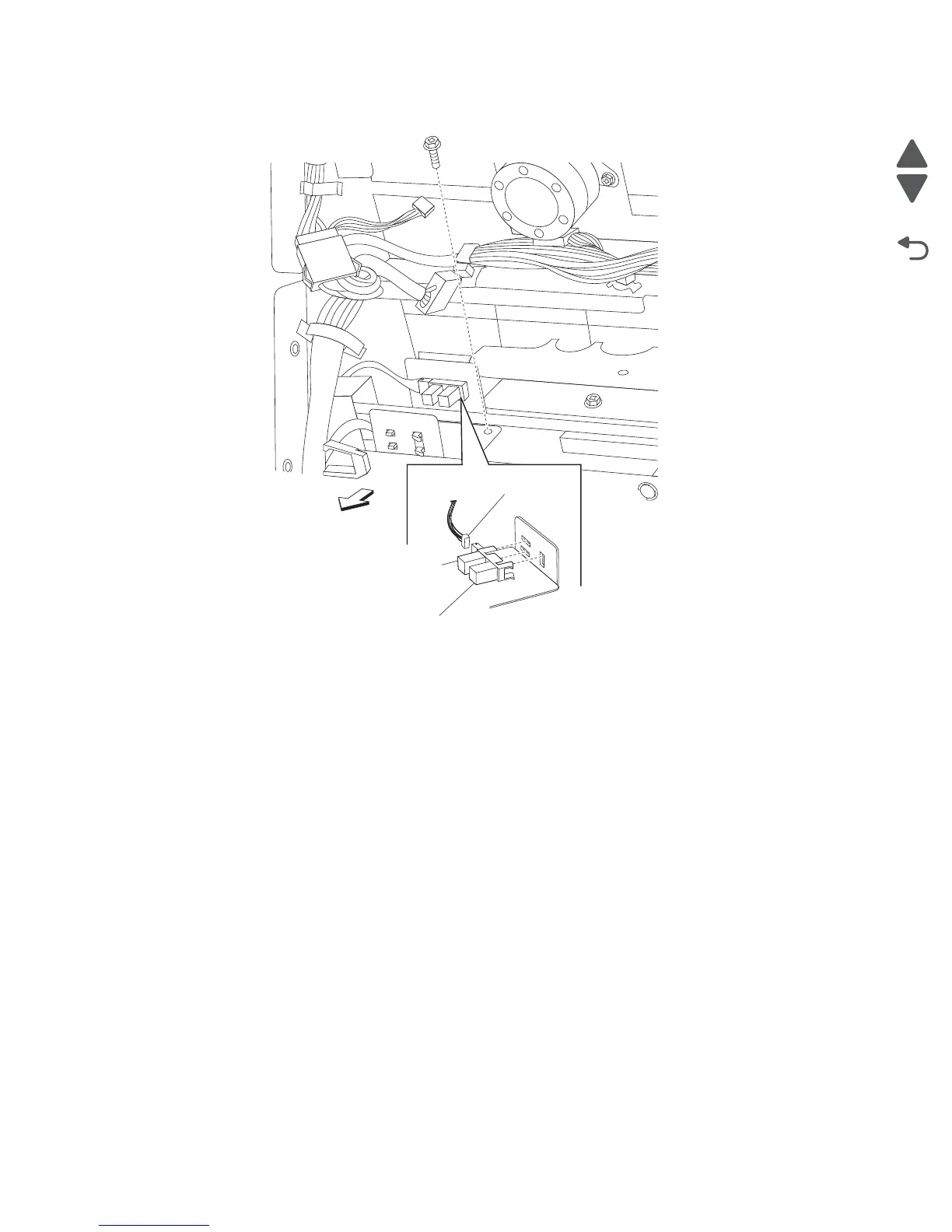

4. Remove one screw securing the sensor (knife HP sensor & Knife folding sensor) from the knife frame
assembly.
Connector
A
Left
