Repair information 4-321
5058-030

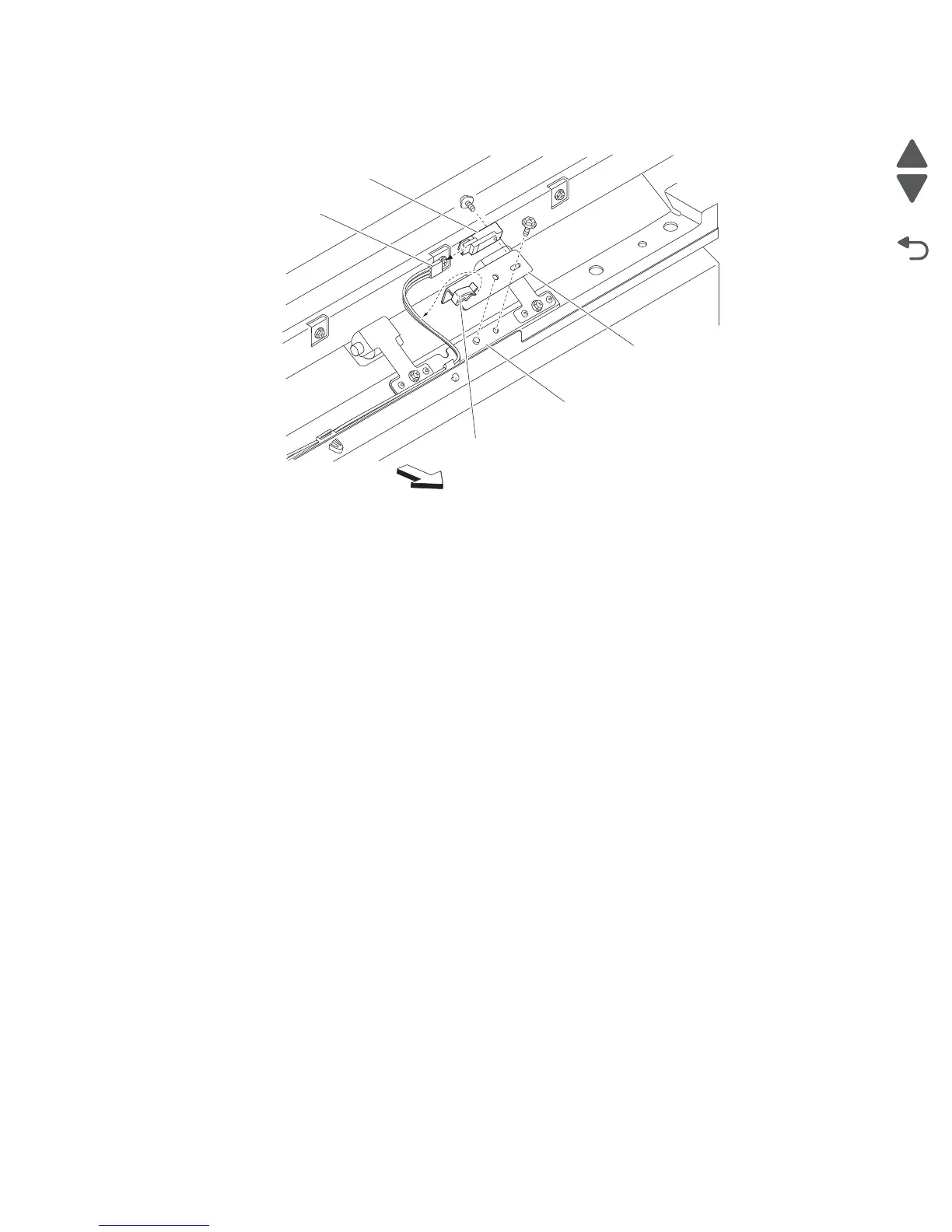

8. Release the harness from the clamp.
9. Remove the screw securing the bracket (B) to the media entrance pinch guide assembly (C).
10. Release the hooks securing the sensor (finisher media entrance) (A) to the bracket (B).
11. Remove the sensor (finisher media entrance) (A).
Sensor (front tamper HP) and sensor (rear tamper HP) removals
1. Remove the finisher front door assembly. See “Finisher front door assembly removal” on page 4-276.
2. Remove the rear upper cover. See “Rear upper cover removal” on page 4-309.
3. Remove the rear lower cover. See “Upper media bin front cover removal” on page 4-353.
4. Remove the upper media bin assembly. See “Upper media bin assembly removal” on page 4-352.
5. Remove the upper media bin vertical cover. See “Right eject cover removal” on page 4-310.
6. Remove the stapler unit frame. See “Stapler unit frame removal” on page 4-342.
7. Remove the media eject clamp motor assembly. See “Clamp drive motor removal” on page 4-268.
8. Remove the media eject unit assembly. See “Media eject unit assembly removal” on page 4-299.
9. Remove the media eject motor assembly. See “Media eject motor assembly removal” on page 4-298.
10. Remove the media compiler unit assembly. See “Media compiler unit assembly removal” on
page 4-294.
11. Disconnect the connector from the sensor (front tamper HP) (A) or the sensor (rear tamper HP) (B).
12. Release the hooks securing the sensor (front tamper HP) (A) or the sensor (rear tamper HP) (B) from the
media compiler unit assembly (C).
To Next Page
