4-204 Service Manual
5058-030

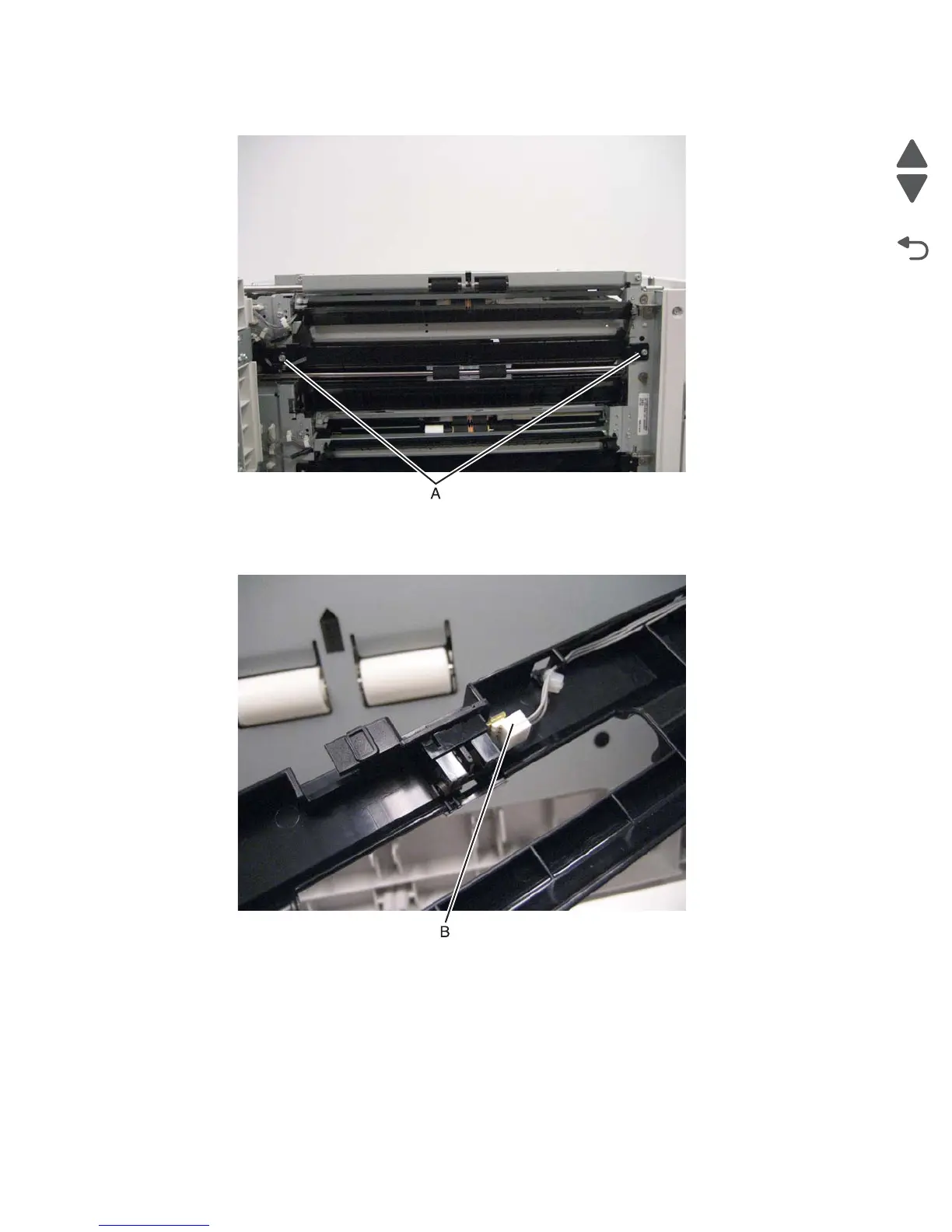

3. Remove the two screws (A) securing the plastic media guide to the machine.
4. Push the plastic media guide slightly toward the rear and pull it out from the machine.
5. Release the hooks securing the sensor (TTM tray 3 feedout) to the machine.
6. Disconnect the cable (B).
Sensor (TTM tray 4 feedout) removal
1. Remove the TTM tray 4 media feeder. See “TTM tray 4 media feeder removal” on page 4-221.
2. Disconnect the cable (A).
