5-20 Service Manual
5058-030

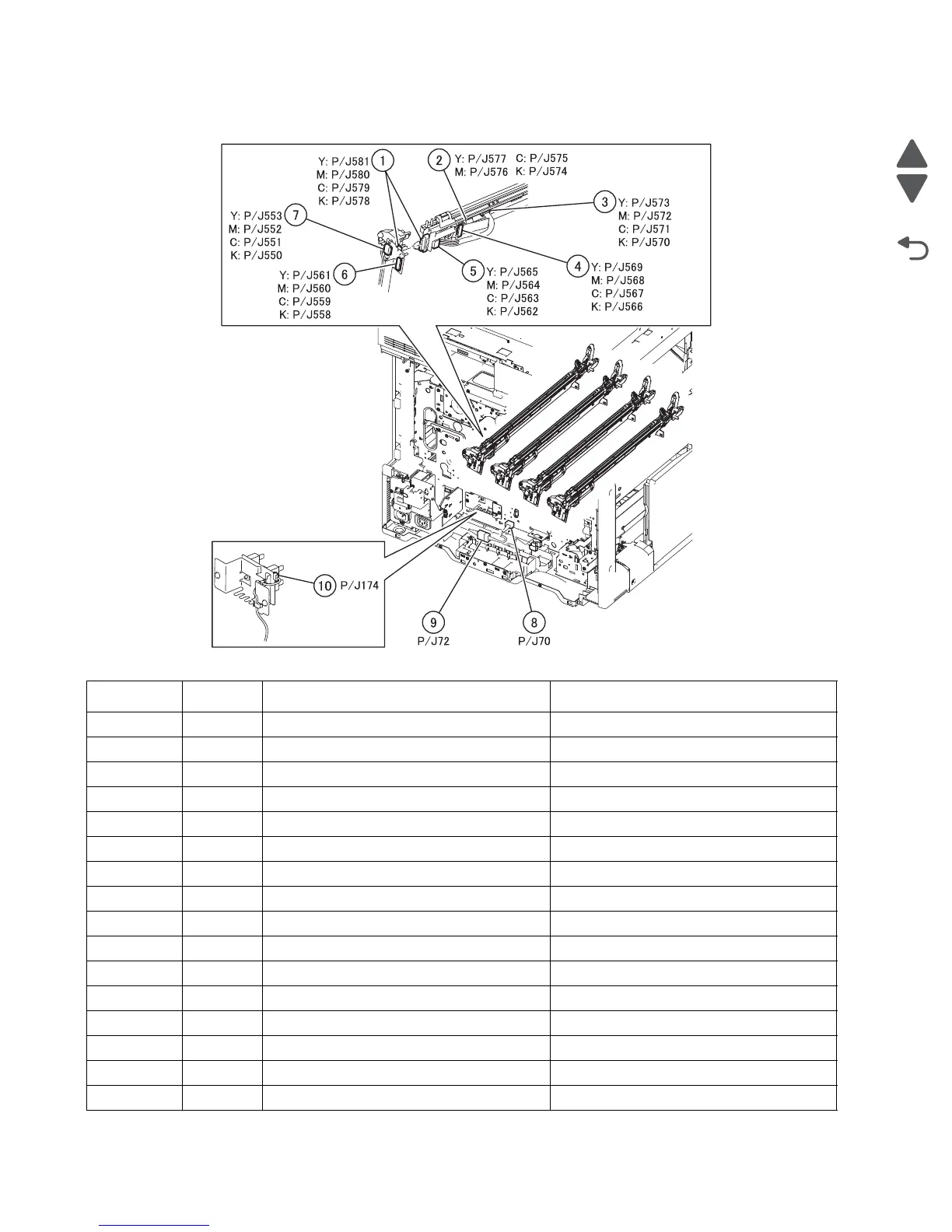

LED printhead
Plug/Jack Callout Plug/jack description Connects to
P/J70 8
P/J72 9
P/J174 10 Media size switch PCB Upper engine PCBA
P/J550 7 Printhead interface contact Lower engine PCBA
P/J551 7 Printhead interface contact Lower engine PCBA
P/J552 7 Printhead interface contact Lower engine PCBA
P/J553 7 Printhead interface contact Lower engine PCBA
P/J558 6 Printhead interface contact Upper engine PCBA
P/J559 6 Printhead interface contact Upper engine PCBA
P/J560 6 Printhead interface contact Upper engine PCBA
P/J561 6 Printhead interface contact Upper engine PCBA
P/J562 5 Printhead interface contact LED printhead
P/J563 5 Printhead interface contact LED printhead
P/J564 5 Printhead interface contact LED printhead
P/J565 5 Printhead interface contact LED printhead
P/J566 4 Printhead interface contact LED printhead
