Lexmark C950 - Transfer Belt Assembly Removal

4-168 Service Manual
5058-030
Go Back
Previous
Next

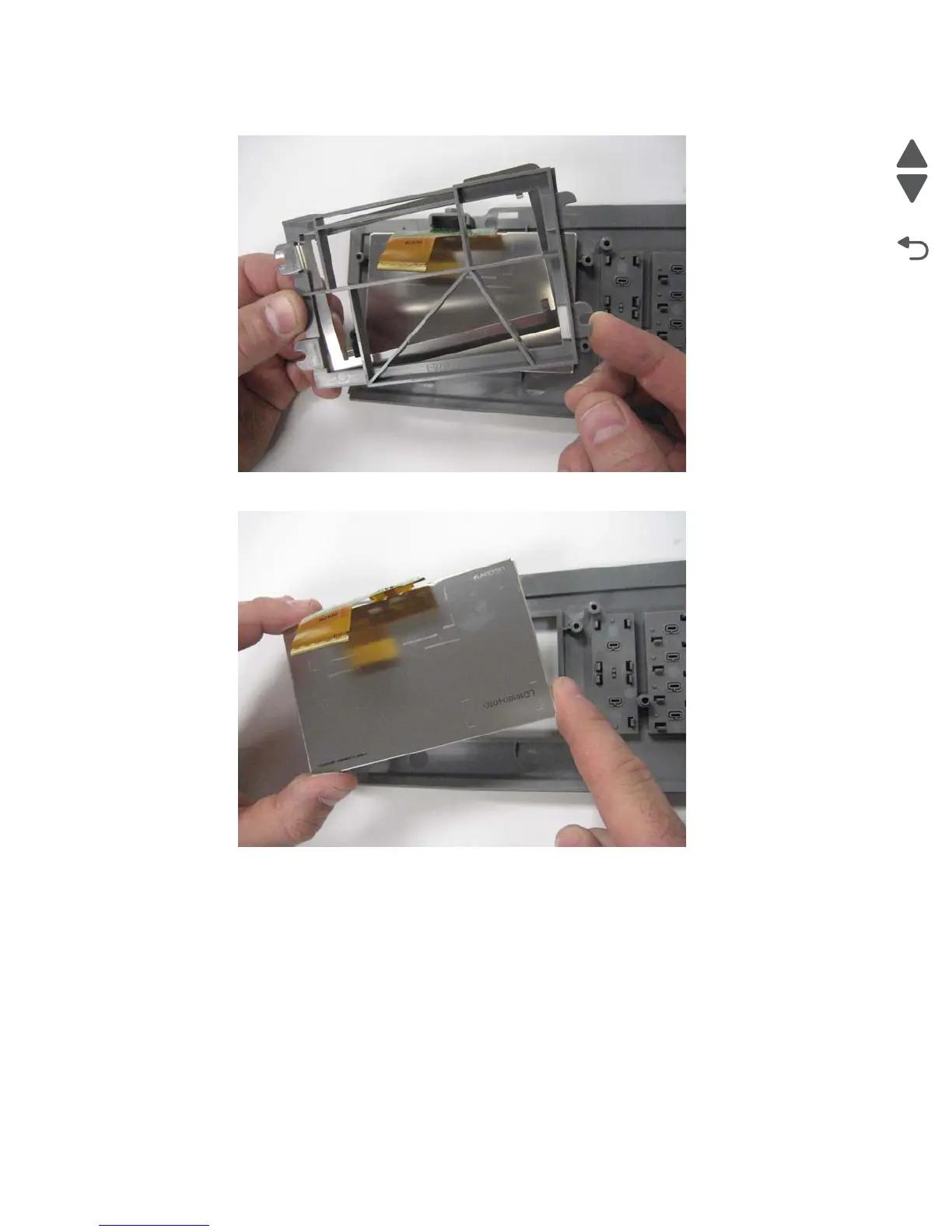

5. Remove the plastic frame and the metal shield.
6. Remove the touch screen.
Transfer belt assembly removal
1. Open the printer front door.
2. Remove the transfer belt cleaner. See “Transfer belt cleaner removal” on page 4-172.
