Lexmark C950 - Sensor (Tray 5 Media Level) Removal

4-384 Service Manual
5058-030
Go Back
Previous
Next
6. Release the hooks securing the sensor (HCF top door interlock) (A) to the bracket (B).
7. Remove the sensor (HCF top door interlock) (A).
Sensor (tray 5 media level) removal
1. Open the HCF top door.
2. Open the HCF feed unit assembly.

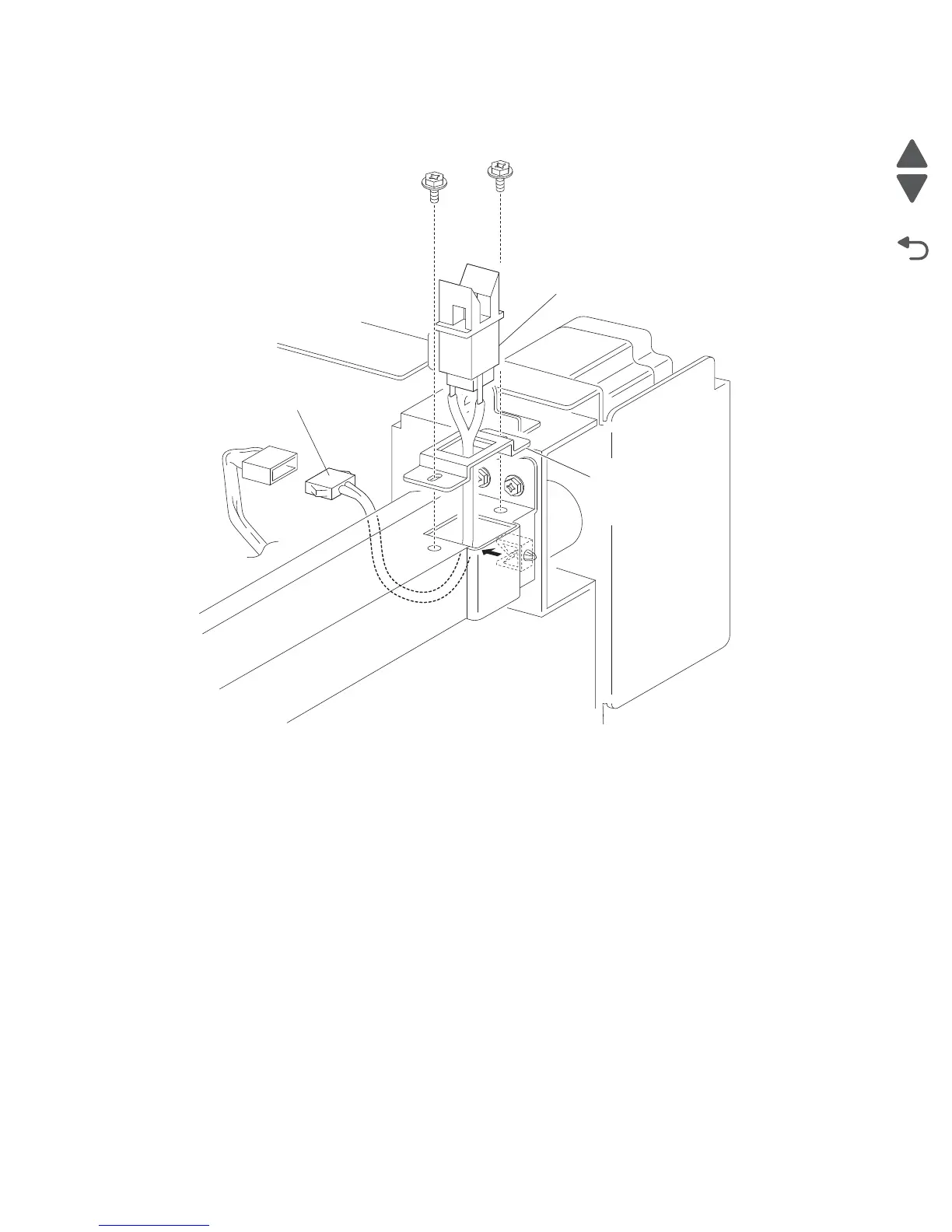

3. Disconnect the connector from the sensor (tray 5 media level) (A).
A
B
Connector
