TTM tray 4 media tray removal
1. Remove the TTM tray 4 media transport. See “TTM tray 4 media transport removal” on page 4-224.

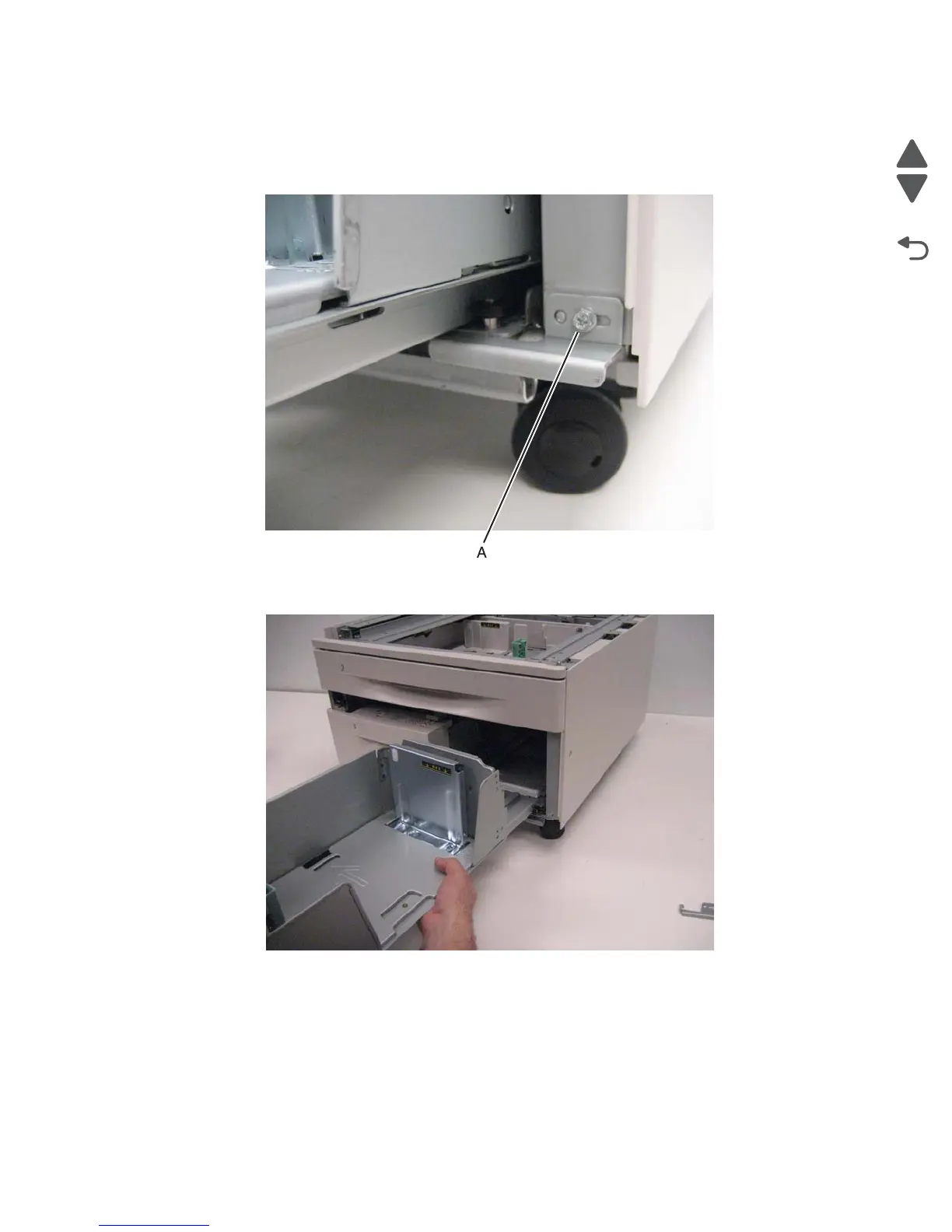

2. Remove the screw (A) securing the lock bracket to the machine.
3. Remove the lock bracket.
4. Gently lift and remove the TTM tray 4 media tray from the machine.
