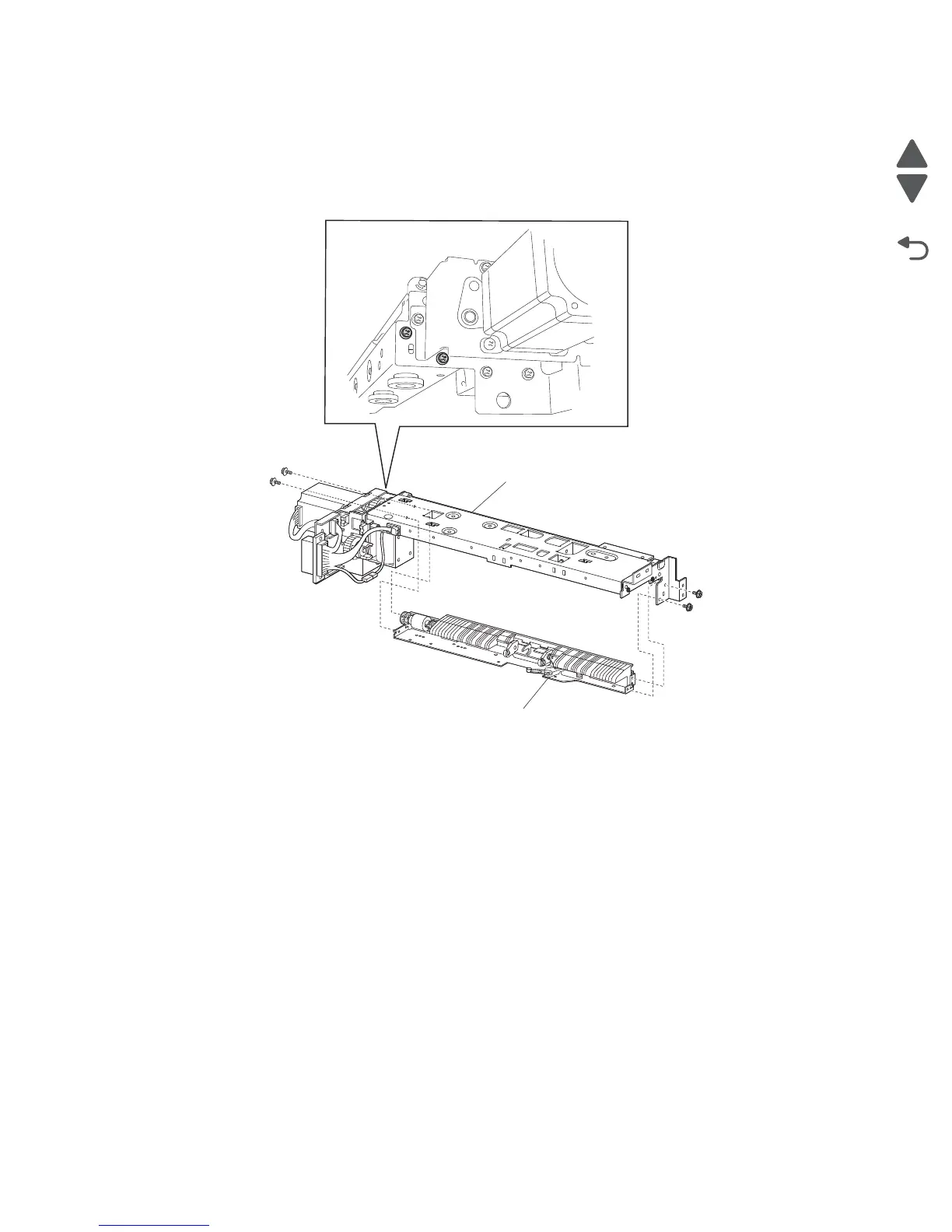

6. Remove the four screws securing the separation roll shaft assembly (A) to the media feed unit assembly
(B).
7. Remove the separation roll shaft assembly (A).
Note: The HCF media feed unit assembly (B) becomes detached from the separation roll shaft assembly
(A) at the hinge point.
Note: Before re-installing the separation roll shaft assembly (A), ensure the HCF media feed unit assembly (B)
is re-attached at the two hinge points.
HCF top cover removal
1. Pull out the HCF media tray.
2. Remove the four screws securing the HCF top cover (B).
B
A
