Lexmark C950 Service Manual

Repair information 4-315
5058-030
Go Back
Previous
Next

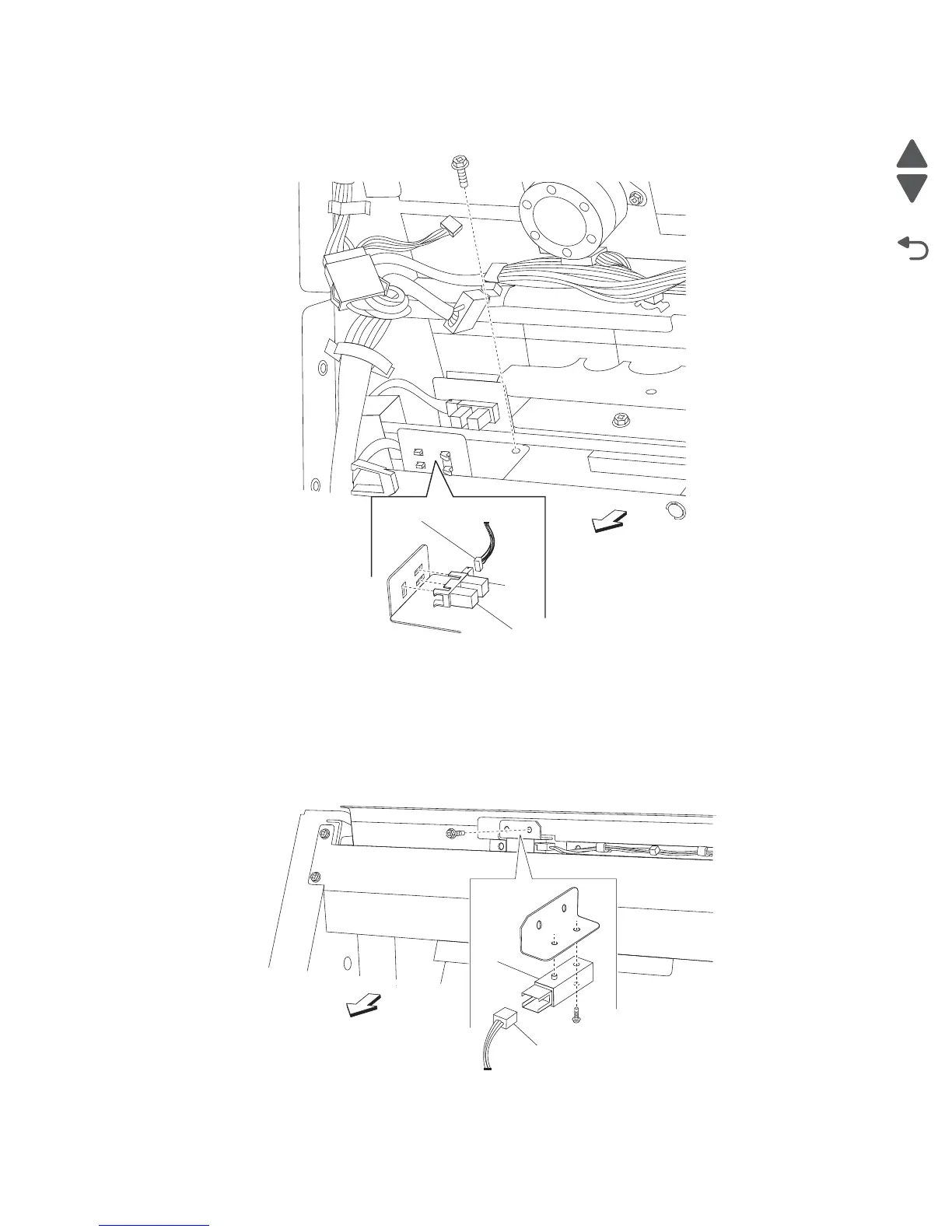

5. Disconnect the connector from the sensor (booklet knife HP and booklet knife folding).
6. Remove sensor (booklet knife HP) (A).
Sensor (booklet media entrance) removal
1. Remove the booklet unit chassis. See “Booklet unit chassis removal” on page 4-263.
2. Disconnect the connectors from the sensor (booklet media entrace) (A).
3. Remove the screw securing the sensor (booklet media entrace) bracket from the pinch roll frame.
4. Remove the screw securing the sensor (booklet media entrace) (A) from the bracket.
5. Remove sensor (booklet media entrace) (A).
Connector
A
Left
Connector
A
Right
