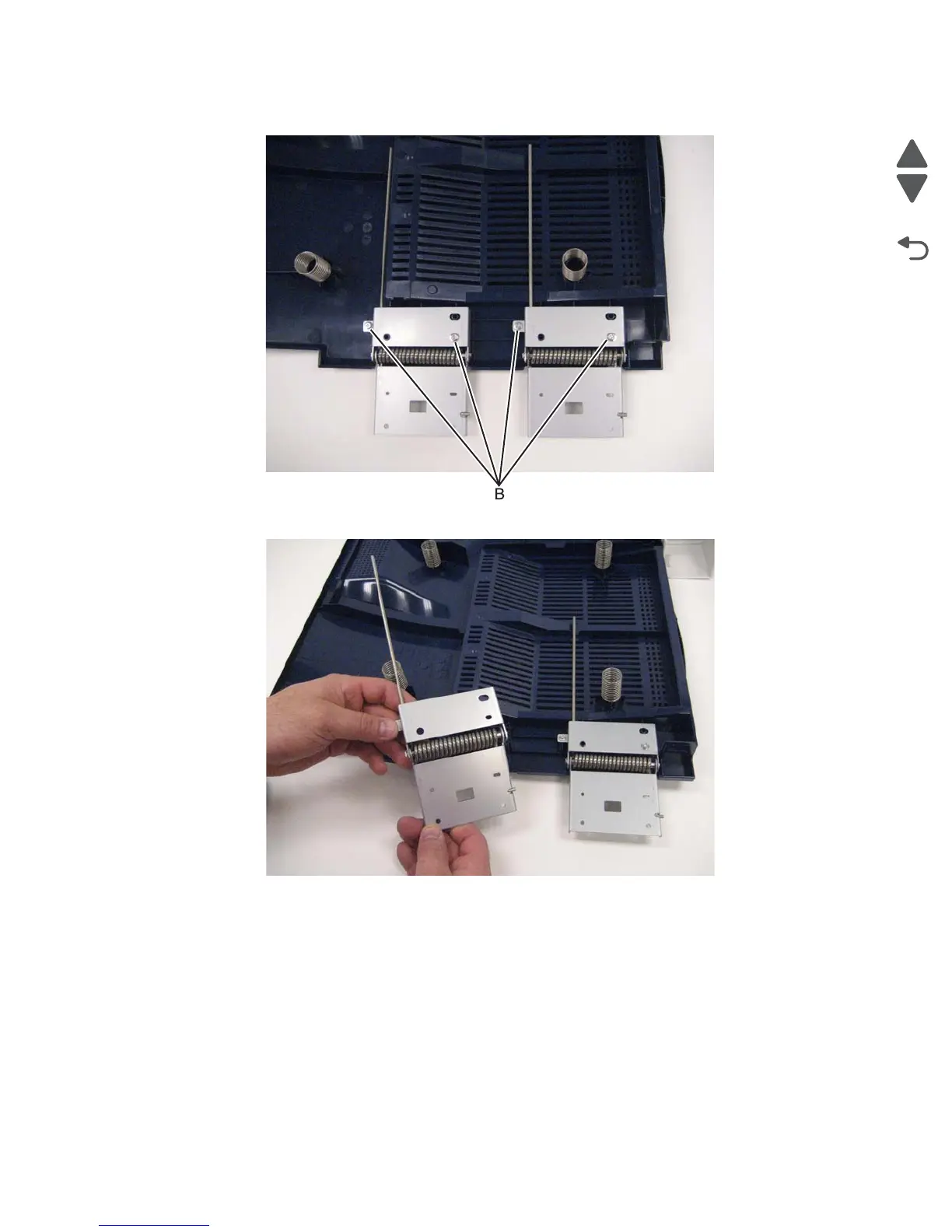

6. Remove the two screws (B) securing the bridge unit top door spring you want to remove.
7. Remove the bridge unit top door spring.
Reinstallation note: Ensure that the inner guide springs are properly reinstalled.
Decurler clutch removal
1. Remove the bridge unit assembly. See “Bridge unit assembly removal” on page 4-232.
2. Remove the bridge decurler rear cover. See “Sensor (decurler cover interlock) removal” on
page 4-247.
3. Release the hooks (A) securing the sensor flag to the machine.
4. Remove the sensor flag.
