Lexmark C950 - Registration Drive Motor Removal

Repair information 4-141
5058-030
Go Back
Previous
Next

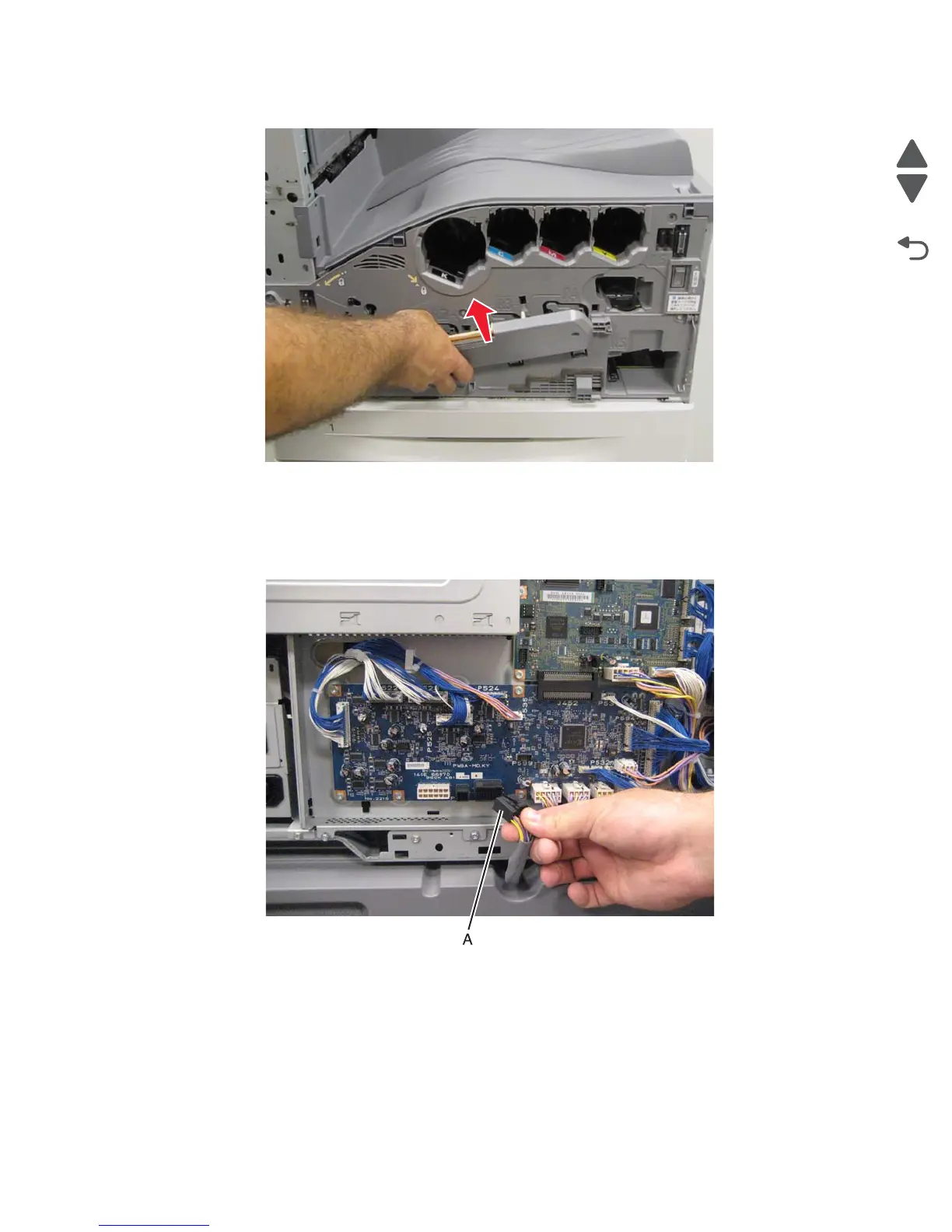

5. Remove the printhead retract door.
Registration drive motor removal
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-16.
2. Disconnect the input option cable (A).
