4-142 Service Manual
5058-030
Go Back
Previous
Next

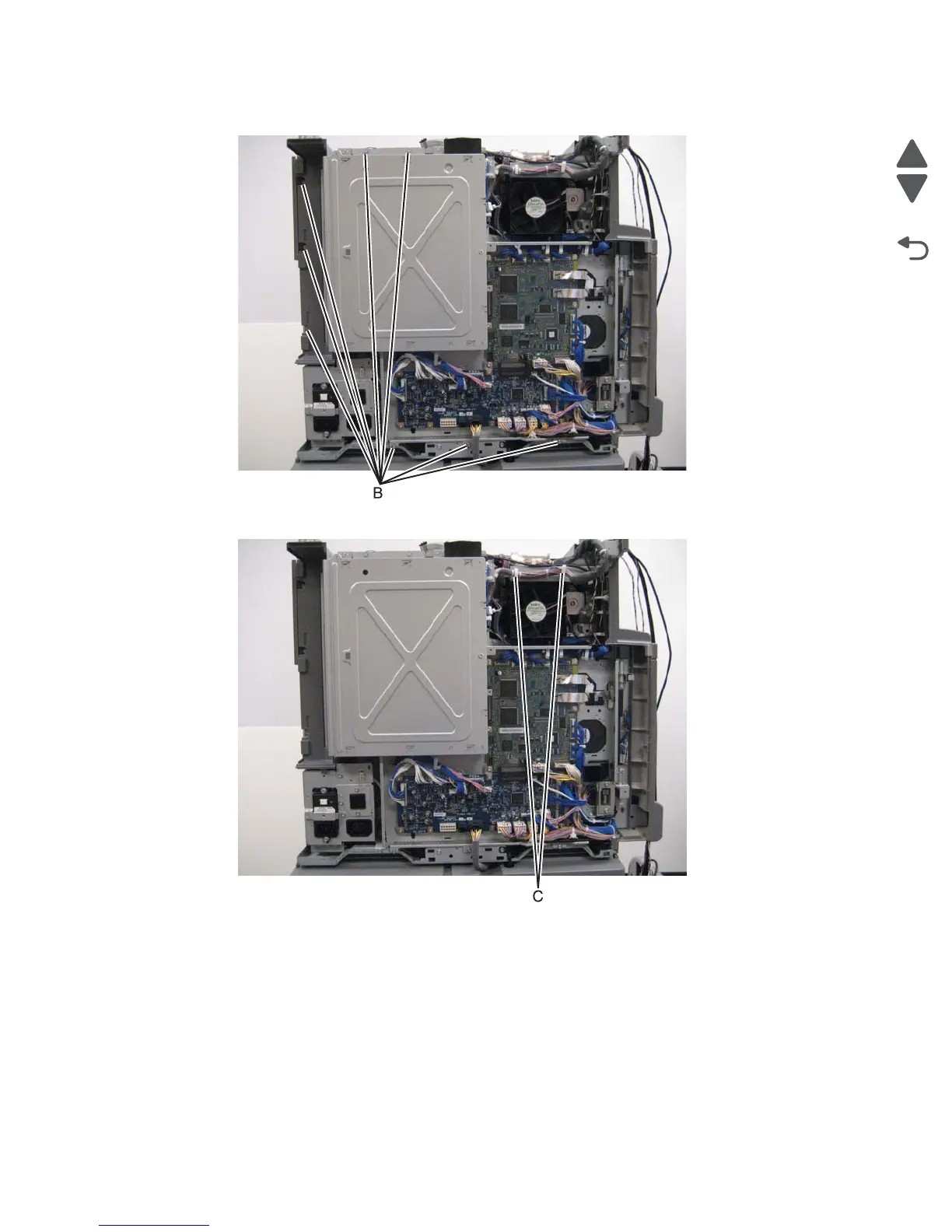

3. Remove the eight screws (B) securing the PCBA door to the machine.
4. Release the two clamps (C) to release the harness.
5. Swing the PCBA door open.
6. Remove the media transport/MPF drive motor. See the “Media transport/MPF drive motor removal” on
page 4-118.
